Description

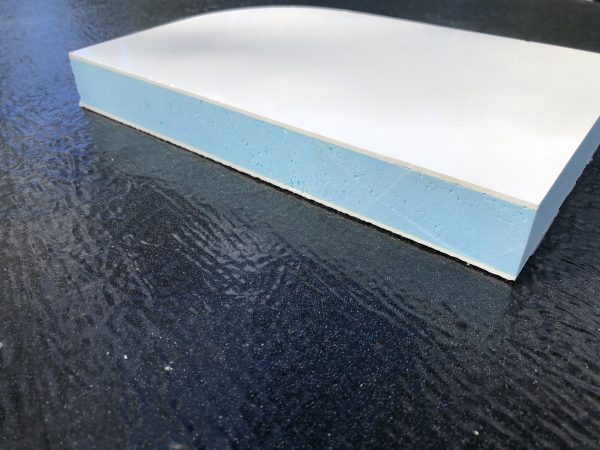

Composite Panel – Kit C – XPS Core

These Composite Panel – Kit C – XPS Core panels are custom-made for each customer’s project, such as caravans, truck campers, exploration vehicles, motorhomes, and more.



Key Features of Composite Panel Kit C include:

• So quality German Lamilux GRP skins, 1.9mm Gloss White, are standard for durability and aesthetics.
• Jackodur Extruded Polystyrene cores or similar materials ensure superior insulation (also see Documents below).
• Fuller Kommerling Adhesive is applied to both surfaces, also providing excellent adhesion.
• So Panels can be produced up to 2.8m wide and 14.0m long to fit various project sizes.
• Also manufactured using the ‘Vacuum Bag Technique’ for consistent quality.
• Includes CNC cutting facilities with a state-of-the-art Multicam CNC machine for precise cuts.
• Also lightweight panels offer excellent thermal properties, enhancing performance.
• Finally these panels are currently used by many Australian RV manufacturers for their reliability.



Pricing

Panel kits are priced based on the kit size in square meters (m²).



Freight

This product is available for collection ex works in Northern NSW.



Not Sure Which Panel Type to Choose?

Click here for more help.



Panel Design

The following panel options are available with Panel Kit C:

• Panel Insertion – Pultrusion 38x25mm
• Panel Insertion – Hi Density PVC 70x25mm
• Panel Insertion – Aluminium 40x25mm
• Other panel thicknesses (e.g., 42mm, 49mm) are available for specialist projects. For more details, please ask for details.



A typical panel kit from this supplier also includes several specially designed parts:

• LHS and RHS composite wall panels
• Roof panel
• Front and rear composite wall panels
• Floor Panel C



Other Features:

• Each panel is made to order, ensuring minimal waste.
• Adhesive is manually applied to both the skin and the core before vacuum bagging, ensuring full coverage.
• CNC cutting of the perimeter of each panel is also included in the cost for precise fitting.

If you need more information on this product, please contact us here.



Need a Price for Your Panel Kit C?

Click here to request a quote.



Finally, please send your request to DIY Caravans, and someone will be in touch to discuss the best product options available for your project.
