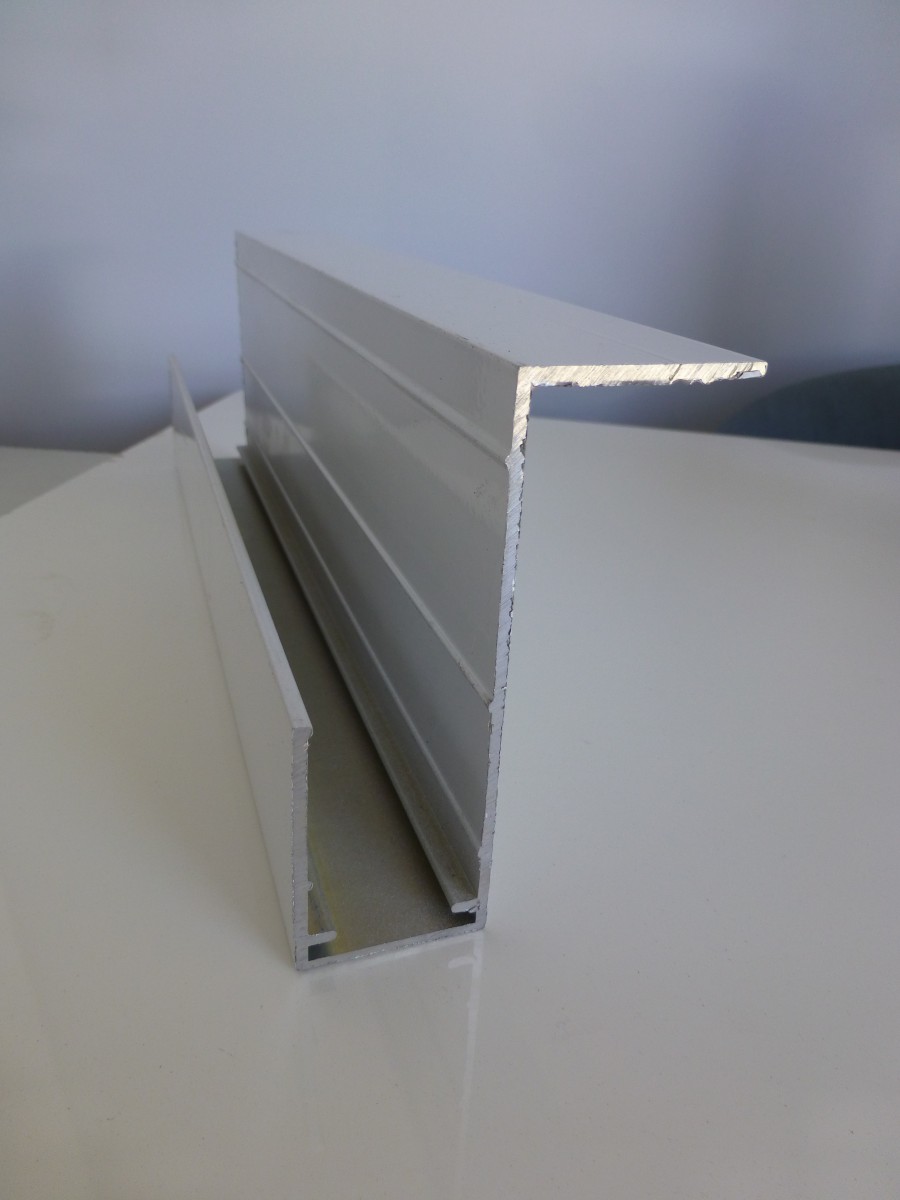

Panel Joiner – DIY Floor 29

The Panel Joiner – DIY Floor 29 is the perfect choice when you need to secure the lower edge of composite walls to both the chassis and the floor.

Designed to provide a strong and reliable fixing for your caravan or RV, it attaches directly to the outrigger system.

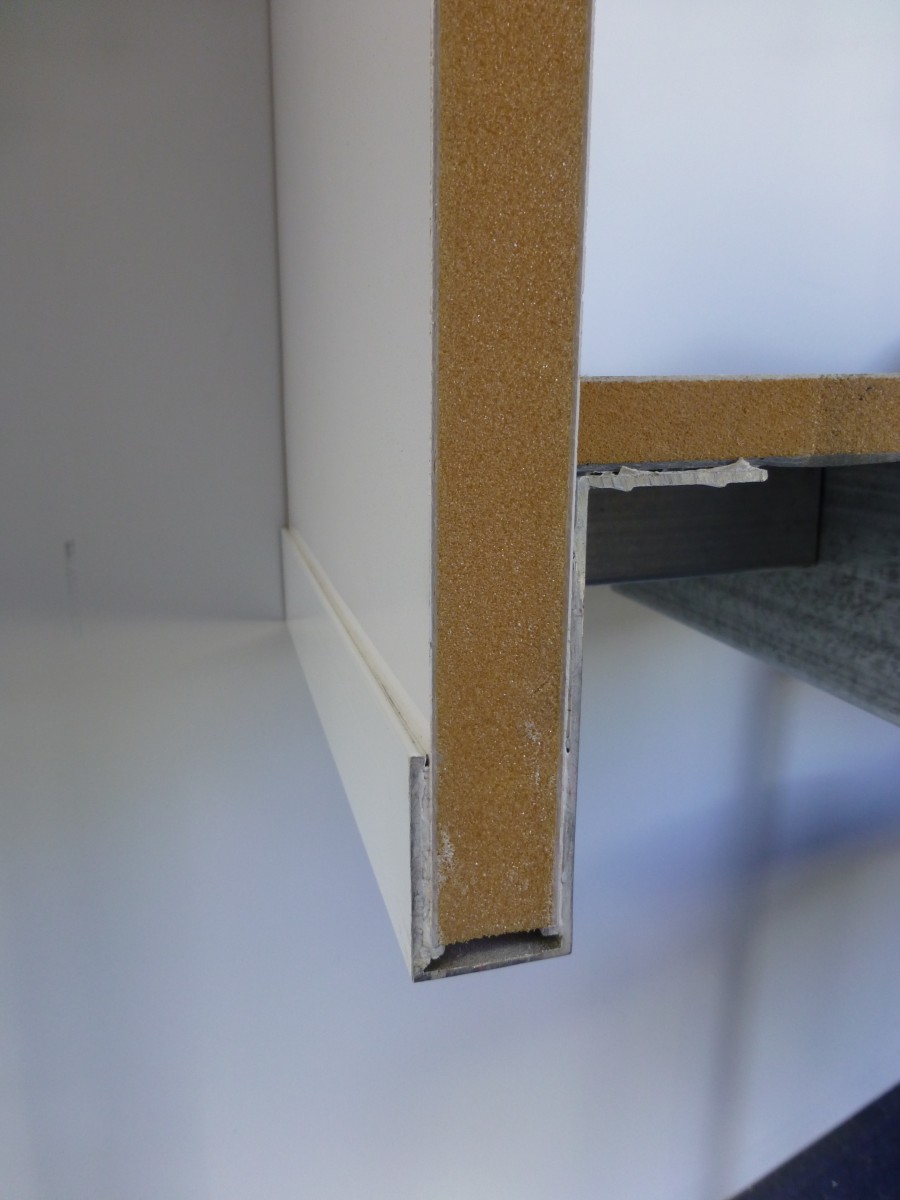

As a result, when you install the floor, the panel joiner is ‘trapped’ between the outrigger and the floor, ensuring a robust and secure assembly.



Key Features:

• Constructed from sturdy Aluminium extrusion, so it offers exceptional durability and strength.
• Available in two finishes: choose from Mill finish or Powder-coated white (depending on your location).
• Offered in three convenient lengths: 2.5m, 4.0m, and 6.5m, so you can select the size that fits your project perfectly.
• Lightweight, with a mass of just 1.27 kg per meter, making it easy to handle and install.
• Suitable for use with panels of 28-29mm thickness. Plus, it features built-in nibs that help maintain a 1mm glue layer.
• Designed with stops to ensure a precise and secure assembly of panels every time.



Technical Information:

The distance between the nibs is 29mm. If your panels are 29.5mm wide (such as those with 1.9mm or 2.0mm skins).

You may need to sand the panel edge or remove a nib before installation.

For more details or if you need the dxf file for this Panel Joiner – DIY Floor 29, please Contact Us and we will email it to you promptly.



Collection Details:

This product is only available for collection in South East Queensland (Mill Finish).





Do you have a question regarding this product? Please email it to us on our Contact Form and we will be in touch.
