DIY Locker Door Profile Kit (Parts A & B)

From: $97.88$119.69 inc. GST

This unique DIY profile has been designed so you can create your own locker doors and access hatches to any size

  • Ideal for slide-out fridges, outdoor kitchens etc – create any size you want
  • Use the panel cut-out as the door insert for a high quality finish
  • Sturdy 2mm Aluminium profile for larger doors and cut-out sizes eg food trucks, toy haulers etc
  • 2 part design for easy & precise installation
  • Available in 4.8 m lengths and Mill Finish only – Price is for one 4.8m length

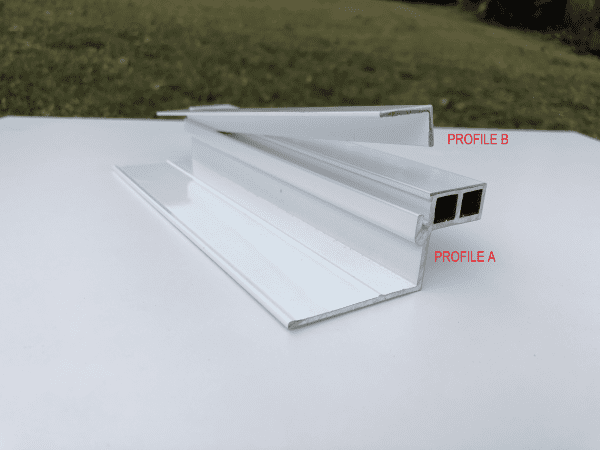

  • Customer chooses Profile A only or Profiles A and B (profile B is standard 25x12x1.6mm angle)
  • Freight available (see below) for minimum orders

DIY DIRECT – bulk discounts for batch of 55 lengths from the mill in mill finishclick here for more info

DIY Locker Door Profile Documents

DIY Locker Door Dimensions

Clear
Make an Enquiry

Description

Technical Info:

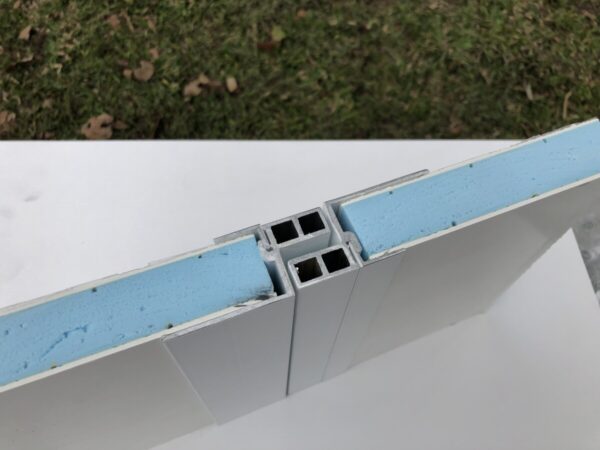

  • The same profile kit can be used to create the opening in the wall AND the  frame of the door – make sure you measure twice round the openings to order the correct number of lengths
  • All cuts to the composite panels and cut-out are straight through – with no rebate cutting required
  • Suits range of piano hinges (not supplied)
  • Easy D seal and lock installation (not supplied)
  • Easy cnc cutting for door hole and door cut-outs – no profile cut required for the cut out
    • Note distance between these cuts will be 38.4mm PLUS the ‘gap’ you require – eg for the hinge
  • Easy retro-fit – holes can easily be cut manually if wall panel already in place

Installation Info

  • For the dxf file for this product please Contact Us here and we will email it to you
  • Designed for composite panels from 28.5 to 29.5mm thickness
  • Ensure you measure all the way to the end of the mitre cuts when calculating lengths required
  • Ability to mitre & weld the joiner corners and then powder coat the frames your colour choice
  • If you weld the piano hinge in place to the aluminium profiles you can then use a 5mm rubber strip between them to make it watertight
  • And then use 10mm deep D seals on the other 3 sides

Freight Info:

Note for minimum orders of 4 lengths which

  • Available for collection ex SE Queensland (Mill Finish), Perth WA (Mill finish)
    • Item will be in 4.8m lengths
  • This item can be shipped with TNT to a factory address in a business zone or your local TNT depot only (not residential addresses).
    • Each length will be cut for freight at 2.4-2.8 m as advised above
    • You will receive the consignment note when shipping is booked

Do you have a question regarding this product ? Please email it to us on our Contact Form and we will be in touch.

Additional information

To be cut for shipping

2400/2400, 2500/2300, 2600/2200, 2700/2100, 2800/2000

Profiles required

Profile A ONLY, Profiles A and B
