Floor Panel A – Honeycomb core (m2)

From: $190.07$229.42 inc. GST

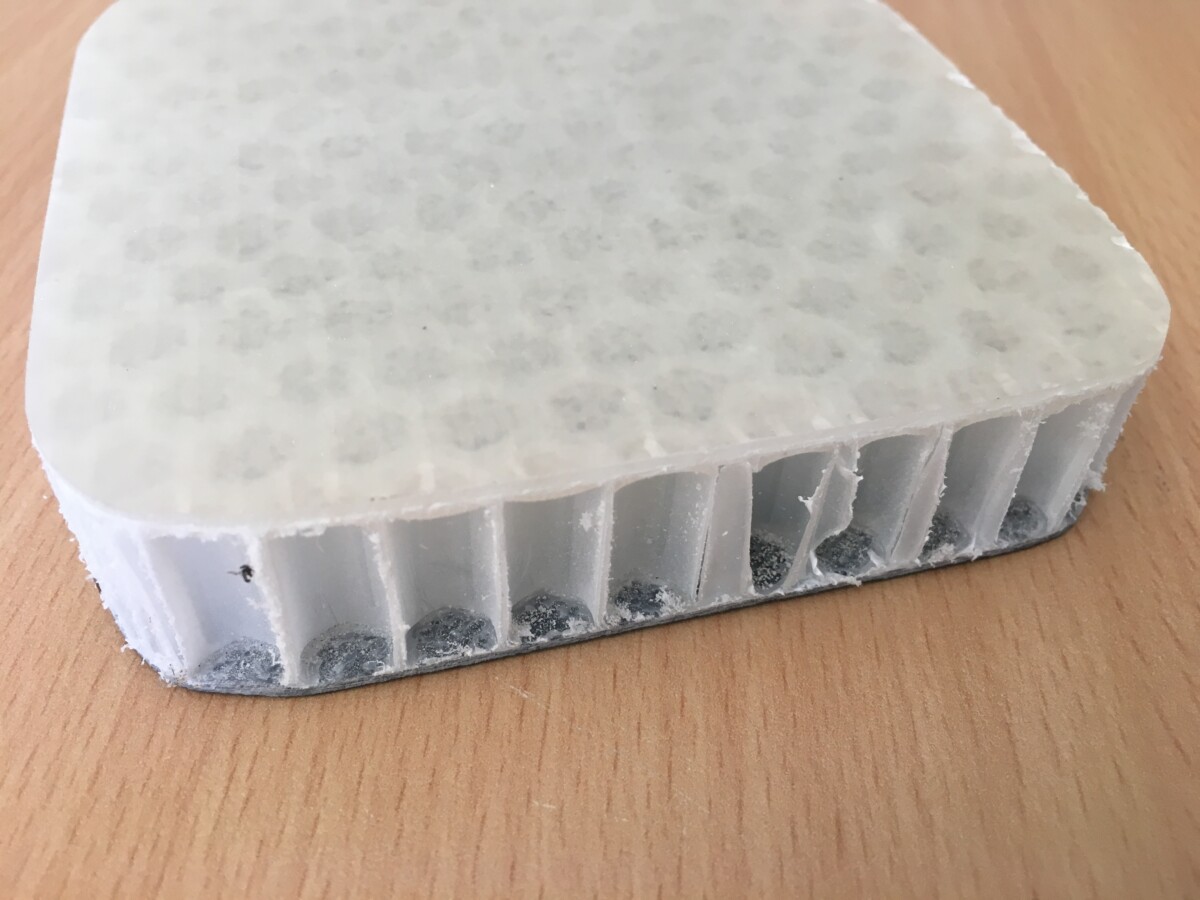

Specially designed as a caravan and RV floor panel this product combines the rigidity of an engineered product with the compressive strength of a honeycomb core :

  • One-piece construction – no joins for extra strength
  • All panels are made to order – only pay for what you get
  • Panels up to 3.0 m wide and up to 10.0 m long can be made
  • Polypropylene honeycomb core for superior long term performance
  • Excellent compressive strength properties – approx. double that of many foam core products
  • Used for caravan and RV floors, mobile stage floors, truck floors and many more
  • 3 thicknesses available – designed for range of cross member spacings
  • Lightweight panels (approx 7 kgs per m2) – up to 40% lighter than plywood
  • Impervious to water – so no risk of deterioration such as rotting or corrosion
  • High impact resistance
  • Will not delaminate
  • A side – clear resin finish for installing floor covering (if required) – no primer required
  • B side – black flow-coat finish for adhesive to attach to chassis

Please note – All products which contain Polypropylene core (or Polycore) material must be fully protected from UV light. In fact any material that is translucent in appearance must always be protected from UV/sunlight to prevent deterioration.

Freight – This product is available for collection ex works SE Quensland (1 hr from Brisbane)

Note – Price below is per m2


Make an Enquiry


Freight & Order Info:

  • This product is made to order in SE Qld and can be bought as an individual panel (min. order 8m2 panel) or as part of  Composite Panel Kit A (any size)
  • Please advise thickness AND panel dimensions required if you require a quote
  • This item is for Collection ex works when it is ready
  • Manufacturing Lead Times apply – approx 4-8 weeks

Quality Assurance:

  • Our Supplier is accredited to AS/NZS ISO 9001:2015 third party to SAI Global and has held this accreditation for over 15 years continuously. As part of the accreditations and standards, Our Supplier operates under a detailed set of Standard Operating Procedures (SOPs).

Additional benefits to customers include:

  • Allows you to build a lighter and stronger caravan or RV
  • No more ‘spongy’ floors
  • Use of this one-piece floor will enhance the strength of your chassis if installed with the DIY panel joiner system by trapping the panel joiner between the out-riggers and the floor panel, and attaching the floor panel to the full length of the chassis
  • Alternatively – the 29 mm panel has been developed so you can now attach the floor to the wall panel using our DIY Panel Joiner for example where a truck camper shell is mounted on a flat tray
  • Better resale value of your project

Do you have a question regarding this product ? Please email it to us on our Contact Form and we will be in touch.

Additional information

Panel Thickness

18mm, 24mm, 29mm
