Panel Joiner DIY Wall 29-29

$185.39 inc. GST

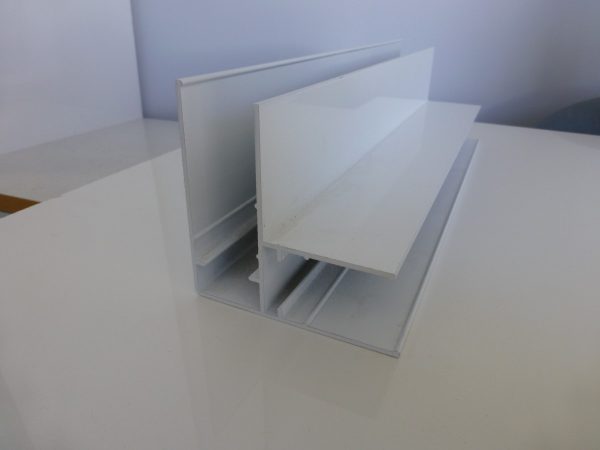

The DIY Wall 29-29 panel joiner is designed to join two 29mm panels together.

  • Can be used for both the rear wall and roof situations, the joiners form part of the ‘monocoque’ construction responsible for the immense strength.
  • Price is for a 6.5m length
  • Available for collection : Melbourne, Vic (White), SE Queensland (White), Perth (Mill finish)

DIY DIRECT – bulk discounts for batch of 22 lengths from the mill – choose mill finish or PC – please contact us for details

Technical Drawing

Description

Key features:

  • Sturdy Aluminium extrusion
  • Powder coated white
  • Available in lengths of 6.5 m
  • Lightweight – mass 1.8 kgs per m
  • For joining two 29mm panels together
  • Provides sturdy fixing point both inside and outside the van
  • Designed with nibs to ‘manage’ 1mm deep glue layer
  • Designed with stops to ensure precise assembly of panels

Technical Info:

  • The distance between the ‘nibs’ is 29mm. If you select 1.9mm or 2.0mm skins your panel width is 29.5mm so you will need to sand the panel edge and/or remove a nib prior to installation
  • For the dxf file for this product please Contact Us here and we will email it to you
