Pop-Top Extrusion Kit #2

$1,437.49 inc. GST

This Kit #2 has been put together for pop-top roofs up to 4.8m long and up to 2.4m wide

Designed specially for the Australian market and ideal for use with DIY Composite Panels

High quality powder coated finish

Available in Black or White

Shipping available Australia wide

Product Info

Pop-top Dimensions

Pop-top Installation Info

Clear

Description

The Kit #2 includes the following components:

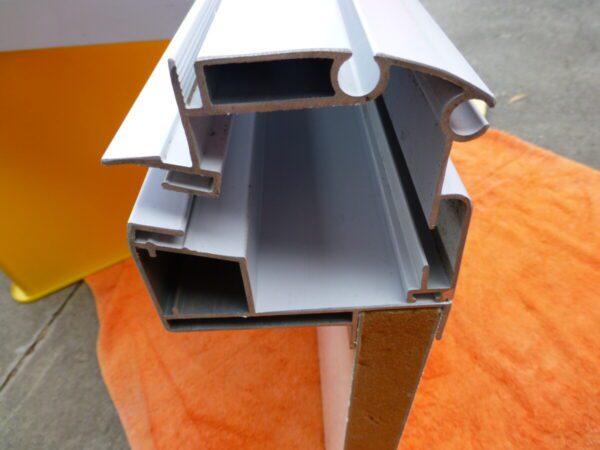

  • Top Extrusion – 3 x 4.8m lengths (1 length to be cut in half for the 2 ends)
  • 4 x Top Corners
  • Bottom Extrusion – 3 x 4.8m lengths (1 length to be cut in half for the 2 ends)
  • 4 x Bottom Corners
  • 4 x Stainless steel brackets to suit bottom corners
  • Rivets

The kit does not include the aluminium angle to secure the roof panel in place

Remember to calculate the length of Pop-top Weather Seal you require and include in the order

Technical Info:

When calculating the lengths of the top pop-top profiles required you can allow 25mm for each corner joiner depth

When calculating the lengths of bottom pop-top profiles required ensure they go right to the corner (see pic)

Please refer to the installation Info above regarding cutting your pop-top kit

For the weight of the pop-top kit ( eg to select canopy lifters) allow 3.3kgs per metre length of pop-top kit around the perimeter (includes top and bottom extrusions)

Use of Fixtech MSP15 adhesive is recommended to create a very robust and water tight join

Need more information on this product prior to purchase? Fill out our Contact Form and someone will be in touch.

Additional information

Colour

Black, White
