Panel Joiner – DIY Roof 40-29

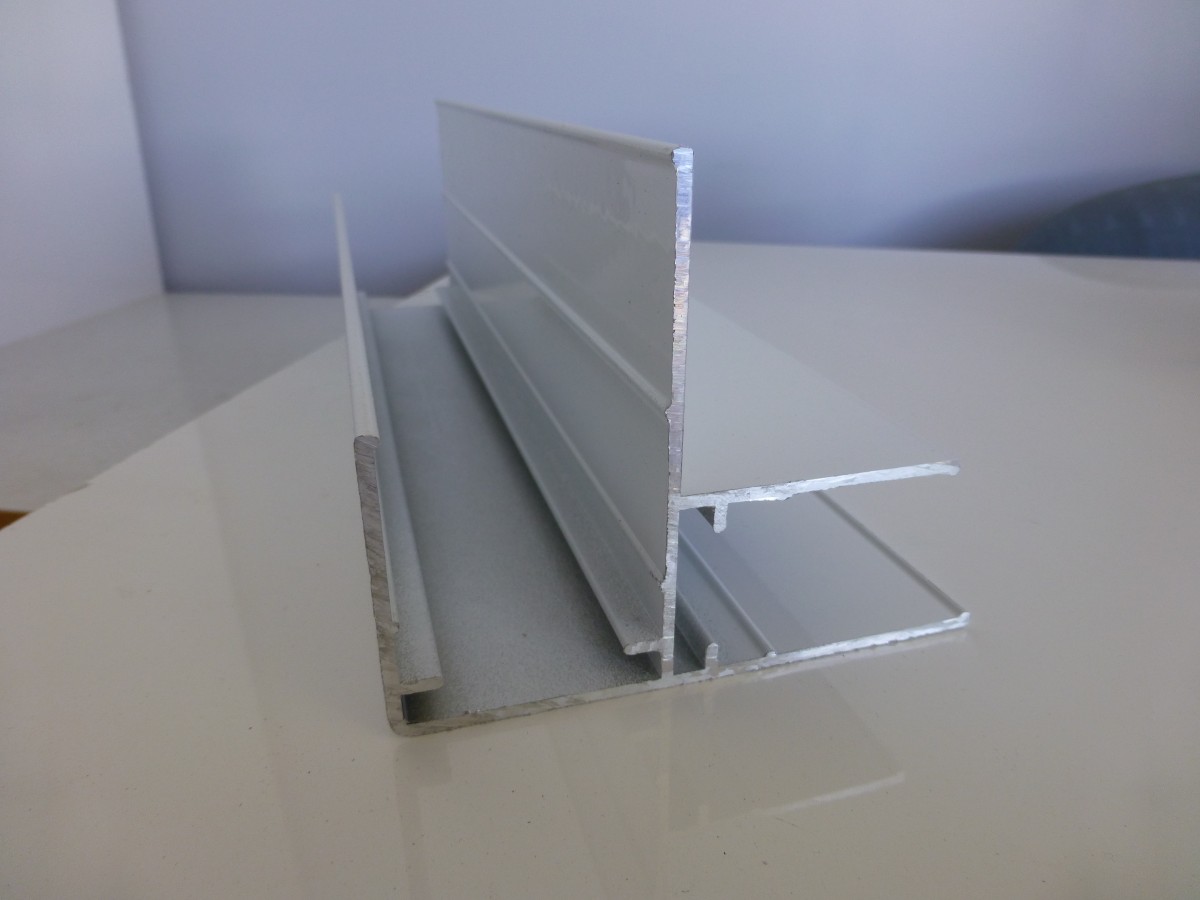

The DIY Roof 40-29 panel joiner is designed to join a 29mm panel to a 40 mm panel.

  • Often used to attach the roof panel to a 29mm wall panel, the joiners are part of the ‘monocoque’ construction responsible for the immense strength.
  • Can be shipped Australiawide

Only available by DIY DIRECT – bulk discounts for batch of 24 lengths from the mill – choose mill finish or PC – please contact us for details

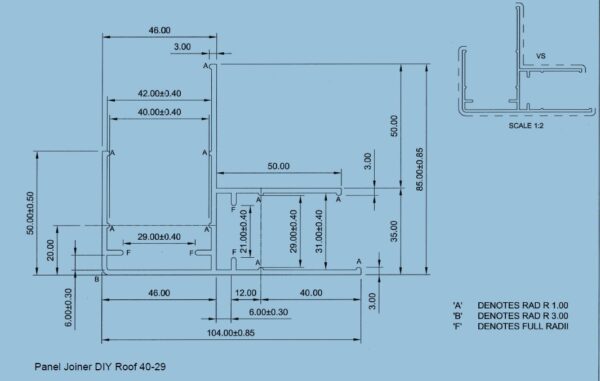

Technical Drawings


Key features:

  • Sturdy Aluminium extrusion
  • Powder coated white
  • Available in lengths of 6.5 m
  • Lightweight – mass 1.7 kgs per m
  • For joining panels 28-29mm thick to panels 39-40 mm thick
  • Provides sturdy fixing point both inside and outside the van
  • Designed with nibs to ‘manage’ 1mm deep glue layer
  • Designed with stops to ensure precise assembly of panels
