DIY Locker Door Profile A (4.8m) – pallet

From: $60.09 inc. GST

This unique DIY profile has been designed for you to build your own access doors and is now available as a pallet direct from the Mill

  • Available in Mill Finish or powder coated your choice of colour
  • Pallet contains approx 55 lengths of 4.8m (250kgs run)

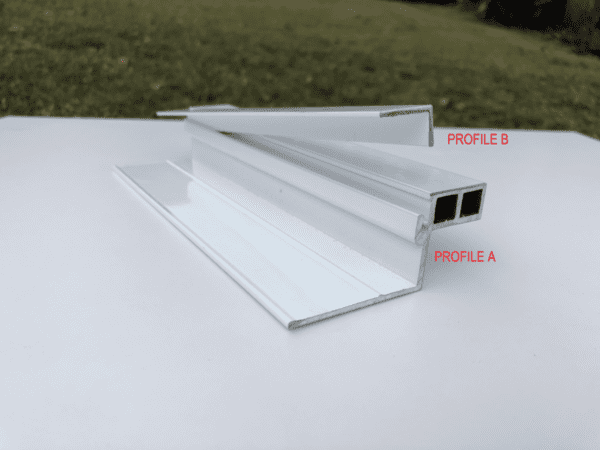

  • Includes profile A only – the Profile B is standard 25x12x1.6mm angle and is not included
  • Enables you to mitre and weld the corners for extra strength
  • Powder coat finished frame to customer’s colour choice
  • Suits range of piano hinges
  • Easy D seal and lock installation

More product details can be found here

DIY Locker Door Profile Documents

DIY Locker Door Dimensions

Make an Enquiry


Technical Info:

  • The same profile kit can be used to create the opening in the wall AND the  frame of the door – make sure you measure twice round the openings to order the correct number of lengths
  • All cuts to the composite panels and cut-out are straight through – with no rebate cutting required
  • Suits range of piano hinges (not supplied)
  • Easy D seal and lock installation (not supplied)
  • Easy cnc cutting for door hole and door cut-outs – no profile cut required for the cut out
    • Note distance between these cuts will be 38.4mm PLUS the ‘gap’ you require – eg for the hinge
  • Easy retro-fit – holes can easily be cut manually if wall panel already in place

Installation Info

  • For the dxf file for this product please Contact Us here and we will email it to you
  • Designed for composite panels from 28.5 to 29.5mm thickness
  • Ensure you measure all the way to the end of the mitre cuts when calculating lengths required
  • Ability to mitre & weld the joiner corners and then powder coat the frames your colour choice
  • If you weld the piano hinge in place to the aluminium profiles you can then use a 5mm rubber strip between them to make it watertight
  • And then use 10mm deep D seals on the other 3 sides

Freight Info

  • Freight available to a business adddress with a forklift Australia wide

Do you have a question regarding this product ? Please email it to us on our Contact Form and we will be in touch.
