Cruisemaster ATX Coil Suspension Kit

From: $3,778.00 inc. GST

Australia’s Premium All-Terrain Suspension System. The ATX Coil system is available in single axle kits up to 3000kgs and tandem axle kits up to 4500kgs.

  • Long travel (140mm) single arm design
  • 215mm ride height
  • 63mm Square stub axle with 3.3T Bearings
  • 46mm Piggyback Dampers
  • King Springs Coil
  • Drum or ventilated disc brake options
  • Standard rebound cable
  • Premium multi-stage powdercoating
  • Locking camber and toe adjustment
  • Simple self-aligning mounting system
  • Australian manufactured with only highest quality components
  • Cruisemaster 5 year conditional Warranty
  • Kits are made to order and shipped Australia wide – see below
  • DIY practical Design and Build Info for this product can be found HERE

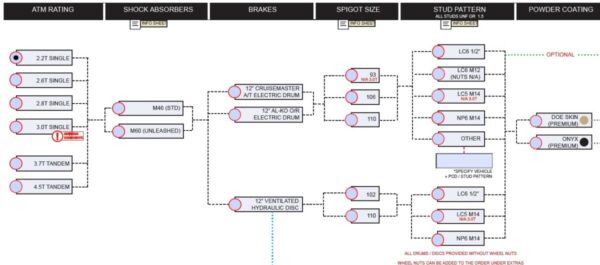

  • Choose from a range of Options – see image gallery

Design your own kit by selecting from the many build options below and click ‘Make an Enquiry’ to send your design to us. We will contact you to help with the next step.

Make an Enquiry


Technical Information:

  1. The ATM is a critical specification for correct coil / bump stop combination selection. The ATM is the total weight of vehicle including full payload. Overstating or understating this capacity could lead to a detrimental effect on the ride, ride height and handling.
  2. Ratings assume a drawbar load of 7-12% ATM.
  3. For help choosing your Spigot size see diagram in ‘Product Documents’

Freight Info:

  • Pick up option available from Manufacturer
  • Cruisemaster Suspension Kits can be shipped direct (on a pallet) to a factory address in a business zone or your local TNT depot.
  • You will receive the consignment note when shipping is booked
  • A discount may be applied to the freight cost
  • We do not ship to residential addresses.

Other Manufacturer Info

  • Designed for any off-road adventure
    • Keeping the wheels on the ground is the name of the game for off-road travel.
    • ATX’s long travel design keeps it firmly planted in challenging terrain
  • 63mm Stub axle with 3.T Bearings
    • ATX uses a Cruisemaster designed bearing set and massive 63mm stub axle to provide ultimate strength in any terrain.
  • Race-bred damper technology
    • ATX uses 46mm monotube piggyback dampers that feature technology used in off-road racing vehicles. This gives the best in suspension control on or off the road.

If your looking for the very best possible suspension to go under a caravan or luxury camper trailer look no further than Cruisemaster ATX suspension system! Designed from the ground up by our in-house engineering team this system screams performance where ever you look.
ATX suspension is build for a lifetime of adventures with its key components being able to be upgraded as your needs change. Buy the coil spring/drum brake configuration now with the option of upgrading to air bag/disc brakes down the track!
Stress less with a heavy duty build less likely to run into problems out on the tracks. A sturdy 63mm stub axle, extra-large 3.3T VC bearing combination, premium monotube dampers and lockable toe and camber adjusters means you can spend more time enjoying your adventures and less time dealing with overheated components and maintenance.

If you are building a chassis to suit this Suspension System please see the Installation Guide above with all the dimensions you need for your design

Additional information

ATM Rating

Single 2200 Kgs, Single 2600 Kgs, Single 2800 Kgs, Single 3000 Kgs, Tandem 3700 Kgs, Tandem 4500 Kgs

Brake Type

Hydraulic Disk Brakes, 12in CM Drums, 12in Alko Drums

Spigot Size

93mm, 106mm, 110mm

Stud Pattern

LC6 1/2in, LC6 12mm, LC5 14mm, NP6 M14mm, Other

Wheel Nuts Required

Yes, No

Shock Absorbers

Single M46 (46mm Monotube ), M60 Unleashed

Trailing Arm Finish

Doe Skin, Onyx
