Cruisemaster ATX Air Suspension Kit

From: $4,380.00$14,518.04 inc. GST

Cruisemaster ATX Air Suspension Kit is firstly Australia’s Premium All-Terrain Suspension System. The ATX Air system is available in single axle kits up to 3000kgs and tandem axle kits up to 4500kgs.

  • Long travel (140mm) single arm design
  • 215mm ride height
  • 63mm Square stub axle with 3.3T Bearings
  • 46mm Piggyback Dampers
  • custom Firestone air spring
  • Drum or ventilated disc brake options
  • Standard rebound cable
  • Premium multi-stage powdercoating
  • Locking camber and toe adjustment
  • Simple self-aligning mounting system
  • Specifically Australian manufactured with only highest quality components
  • Cruisemaster Lifetime Warranty on Suspension Arms and Mounting Hardware
  • Cruisemaster 5 year conditional Warranty
  • Kits are made to order and shipped Australia wide
  • DIY practical Design and Build Info for this product can be found HERE

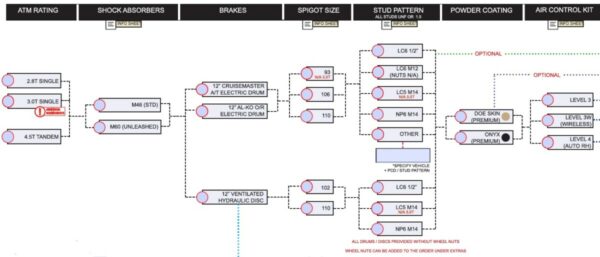

  • Choose from a range of Options – see image gallery
  • If you choose ABS Enabled brakes, you also need to order the Bosch Trailer Safety Control (TSC) to order, click here.
  • Air control systems are also available as a separate item – click for more details – including self-levelling and wireless. Please note that only Level 3 and Level 4 Air Control Kits are sold with the ATX suspension kits

Finally design your own kit by selecting from the many build options below and click ‘Add to cart’ (Start with the first option and go through from top to bottom).



Clear
Make an Enquiry

Description

Cruisemaster ATX Air Suspension Kit technical Information:

  1. The ATM is a critical specification for correct coil / bump stop combination selection. Thus ATM is the total weight of vehicle including full payload. Overstating or understating this capacity could lead to a detrimental effect on the ride, ride height and handling.
  2. Ratings assume a drawbar load of 7-12% ATM.
  3. For help choosing your Spigot size see diagram in ‘Product Documents’

Freight Info:

  • Pick up option available from Manufacturer
  • Cruisemaster Suspension Kits can be shipped direct (on a pallet).
  • You will receive the consignment note when shipping is booked
  • A discount may be applied to the freight cost
  • Lead Times approx. 3 – 4 weeks



Other Manufacturer Info

  • Designed for any off-road adventure
    • Keeping the wheels on the ground is the name of the game for off-road travel.
    • ATX’s long travel design keeps it firmly planted in challenging terrain
  • 63mm Stub axle with 3.T Bearings
    • ATX uses a Cruisemaster designed bearing set and massive 63mm stub axle to provide ultimate strength in any terrain.
  • Race-bred damper technology
    • ATX uses 46mm monotube piggyback dampers that feature technology used in off-road racing vehicles. This gives the best in suspension control on or off the road.

If your looking for the very best possible suspension to go under a caravan or luxury camper trailer look no further than Cruisemaster ATX Air Suspension Kit system! Designed from the ground up by our in-house engineering team this system screams performance where ever you look.
Also ATX suspension is build for a lifetime of adventures with its key components being able to be upgraded as your needs change. Buy the coil spring/drum brake configuration now with the option of upgrading to air bag/disc brakes down the track!
Overall Stress less with a heavy duty build less likely to run into problems out on the tracks. A sturdy 63mm stub axle, extra-large 3.3T VC bearing combination, premium monotube dampers and lockable toe and camber adjusters means you can spend more time enjoying your adventures and less time dealing with overheated components and maintenance.

If you are building a chassis to suit this Suspension System please see the Installation Guide above with all the dimensions you need for your design

Additional information

ATM Rating

Single 2800 Kgs, Single 3000 Kgs, Tandem 4500 Kgs

Shock Absorbers (1. Info Sheet)

M46 Single (46mm Monotube ), M60 Unleashed

Brake Type (2. Info Sheet)

Drum – 12in CM A/T Electric Brakes, Drum – 12in CM ABS Enables A/T Electric Brakes, Disc – Ventilated Hydraulic Brakes

Spigot Size 93-110 (3. Info Sheet)

Select below, 93mm (N/A 3.0T), 106mm, 110mm

Spigot Size 102-110 (3. Info Sheet)

Select above, 102mm, 110mm

Stud Pattern LC6-Other (4. Info Sheet)

Select below, LC6 1/2in, LC6 12mm (Nuts N/A), LC5 14mm (N/A 3.0T), NP6 14mm, Other (Please info on checkout)

Stud Pattern LC6-NP6 (4. Info Sheet)

Select above, LC6 1/2in, LC5 14mm (N/A 3.0T), NP6 14mm

Trailing Arm Finish (5. Info Sheet)

Doe Skin (Premium), Onyx (Premium)

Air Control Kit (6. Info Sheet)

NO, Level 3 Manual, Level 3 Wireless, Level 4 Auto

Wheel Nuts Required

Yes, No
