Houghton Belaire HB3400 AC unit

Description

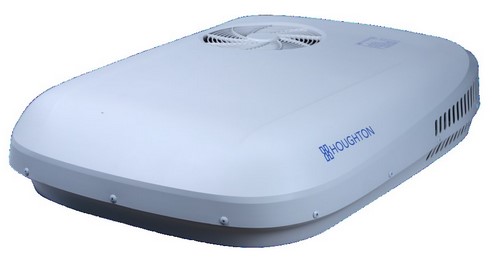

Houghton Belaire HB3400 Caravan Air Conditioner

Powerful Reverse Cycle Air Conditioning for Caravans & Motorhomes

The Houghton Belaire HB3400 AC unit Caravan Air Conditioner delivers outstanding heating and cooling performance with low noise and vibration. Designed for caravans and motorhomes, its streamlined low-profile design provides powerful climate control while integrating neatly with modern RV rooflines.

At only 223mm high, the streamlined rooftop canopy helps reduce overall vehicle height and aerodynamic drag. Inside, the low-profile plenum provides excellent airflow through four-way outlets, allowing conditioned air to be distributed throughout the living space.



Quiet & Efficient Performance

The independent double fan design provides efficient operation across a wide range of conditions. A large outdoor axial fan assists with heat exchange, delivering powerful performance while maintaining low operating noise.

Excellent reverse cycle performance allows the HB3400 to operate in temperatures as low as -5°C and up to +50°C. Intelligent defrosting technology further supports heating performance in cold conditions.



Designed for Easy Operation

The supplied remote control provides cooling, heating, dehumidifying, dry, sleep and timing functions. The air filter is also easy to remove for regular inspection and cleaning.

A spiral retractable duct simplifies installation without requiring cutting, while insulation helps reduce condensation and optimise performance. The lightweight UV-stabilised polypropylene chassis and canopy are designed to withstand demanding caravan and motorhome conditions.



HB3400A – LED & WiFi Version

The HB3400A version includes an LED plenum and WiFi connectivity. The low-profile interior plenum features an easy-to-read LED display showing temperature and operating mode, together with an integrated LED reading light.

The HB3400A combines the powerful HB3400 air conditioning platform with additional convenience and connectivity for modern caravan and motorhome installations.



HB3400 Technical Specifications

• Power Supply: 1 PH / 230–240V / 50Hz
• Cooling Capacity: 3400W
• Cooling Power Input: 1350W
• Cooling Current: 5.8A
• Heating Capacity: 3000W
• Heating Power Input: 1250W
• Heating Current: 5.4A
• Maximum Input Power: 1700W
• Maximum Current: 7.4A
• Outdoor Unit Weight: 43kg
• Plenum Weight: 3kg
• Outdoor Unit Dimensions: 1122L x 850W x 223H mm
• Plenum Dimensions: 575L x 556W x 49H mm
• Roof Opening: 360 x 360mm
• 400 x 400mm Opening: Optional adaptor required
• Warranty: 2 Years
• Part Number (HB3400B – Standard): FIN-HB3400B
• Part Number (HB3400A – LED & WiFi): FIN-HB3400A



Choose Your HB3400 Model

HB3400B – Standard
Standard plenum without WiFi or LED.

HB3400A – LED & WiFi
Includes WiFi connectivity and LED plenum with display and integrated LED reading light.

Both models provide the same 3400W cooling and 3000W heating performance.



For 400 x 400mm roof openings, an optional 400 x 400mm adaptor is available here.



Installation

Professional installation is recommended for this air conditioner.
