Floor Panel – Holypan HP30W Panel – 30mm

$1,169.45$2,688.00 inc. GST

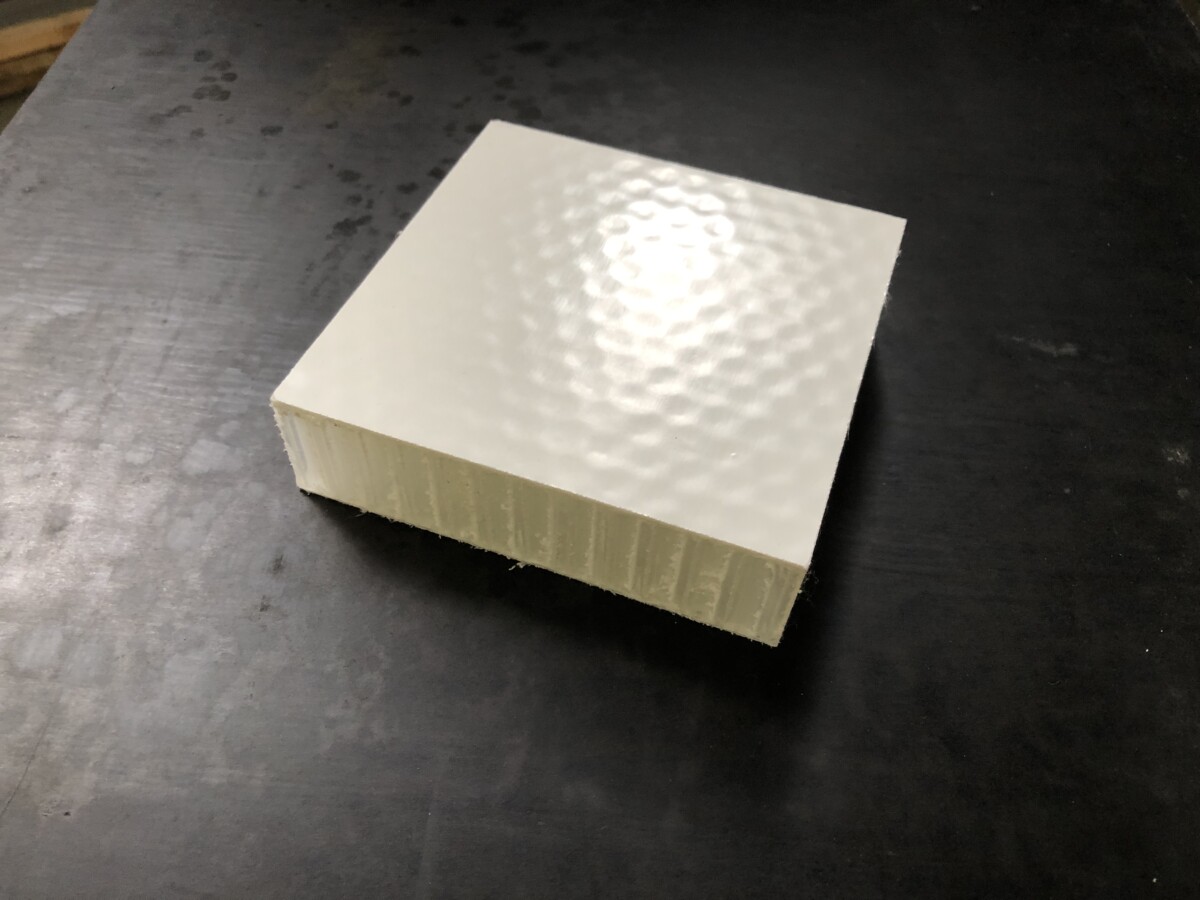

Holypan is a thermoplastic sandwich composite panel consisting of a lightweight polypropylene (PP) honeycomb core and fibreglass reinforced polypropylene-face sheets that are thermofused together by a lamination/melting process

  • Extremely lightweight panel – approx 5kgs /m2
  • Water resistant and will not rot
  • Excellent impact resistance
  • One-piece construction– no joins
  • Will not delaminate
  • A side – 2 pac paint white
  • B side – natural – will require polypropylene primer
  • Available in 30mm thickness
  • Can be Thermoformed and Thermowelded
  • Range of Panel Sizes available – please Contact Us for availability

This product is available as full sheets only – ex works Qld and Vic and can be shipped to a business address

Product Documents

Holypan Technical Info



Technical Information:

  • Please see Product Data Sheet below
  • Any surface exposed to sunlight must be either painted or primed and covered with a floor product to prevent damage by UV radiation
  • The natural finish side will require polypropylene primer before using any adhesive, paint or attaching flooring to it
  • DIY Caravans recommends customers select a floor product that is ‘more than’ capable of offering the support required to avoid movement in heavy traffic situations.
  • As a guide only – for normal pedestrian traffic situations, a maximum floor support spacing of no more than 450mm would be recommended for the 25 mm product , and a maximum spacing of 550 mm for the 30mm product.
  • Please note – All products which contain Polypropylene core (or Polycore) material must be fully protected from UV light. In fact any material that is translucent in appearance must always be protected from UV/sunlight to prevent deterioration.

Additional benefits to customers include:

  • highly resistant to oils, salt water and common chemicals
  • Customers use this product for building the body of a truck, van or caravan.

Need more information on this product and a price for your kit? Fill out our Contact Form with a summary of your project and someone will be in touch to discuss the best product options available to you.

Additional information

Panel Size (mm)

4350×2350, 5000×2500, 5500×2500, 5850×2500, 6500×2500, 7600×2500, 9400×2500
