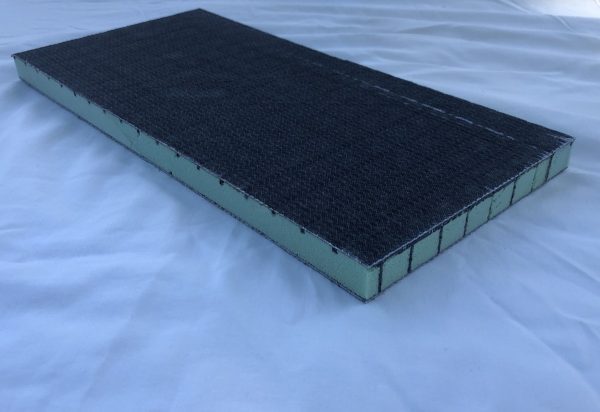

Floor Panel D – pvc core (m2)

From: $183.48$209.88 inc. GST

Specially developed for caravan and RV floors, this product is used by high quality off-road manufacturers

  • Much improved sound and thermal insulation than traditional floors
  • Made to Order up to 2400 mm wide
  • High density H60 pvc grooved and perforated core
  • Manufactured by the process of Vacuum Infusion
  • Structural laminate skins attached to each other
  • One-piece construction– panels are made to order in SE Queensland
  • Choice of 20mm and 32mm thickness
  • Lightweight panels (approx 7 kgs per m2) – up to 40% lighter than plywood
  • Impervious to water – so no risk of deterioration such as rotting or corrosion
  • Black finish A and B sides
  • Product is used by high value off road Caravan Manufacturers

Note – The price below is per m2 and is based on a 2400 wide panel

Product Documents

Floor D Technical Info

Make an Enquiry


Technical Information:

  • See technical sheet above for load deflection info
  • Price is per m2 and includes perimeter cutting at up to 2400 wide
  • The 20 mm panel is generally used where cross member supports up to 500 mm wide
  • The 32 mm panel is generally used where cross member supports wider than this
  • As a foam core Floor product, this item will require the use of a covering suitable for preventing ‘indents’ to the top surface
  • DIY Caravans recommends customers select a floor product that is ‘more than’ capable of offering the support required
  • Panels can be made any length and up to 2400 wide

Freight Info:

  • Available for collection Ex works SE Queensland

Minimum Order:

  • This product is subject to a minimum purchase of 8 m2

Additional benefits to customers include:

  • Allows you to build a lighter and stronger caravan or RV
  • Improved insulation qualities
  • Use of this one-piece floor will enhance the strength of your chassis if installed with the DIY panel joiner system by trapping the panel joiner between the out-riggers and the floor panel, and attaching the floor panel to the full length of the chassis
  • Better resale value of your project

Do you have a question regarding this product ? Please email it to us on our Contact Form and we will be in touch.

Additional information

Panel Thickness

20mm Panel, 32mm Panel
