DIY Shower Cubicle H

$1,016.40 inc. GST

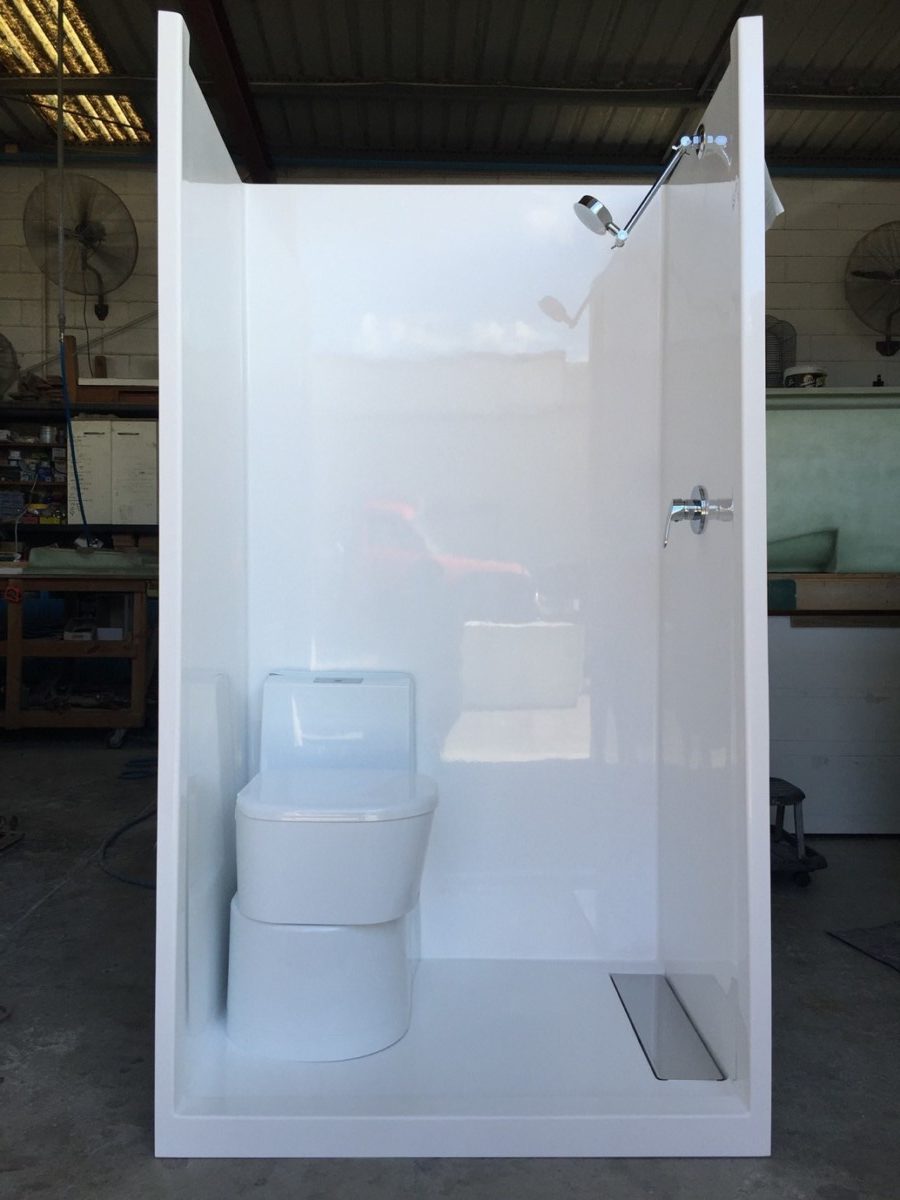

This high quality shower cubicle has been developed so it can be used with or without a compact toilet.

  • Ideal where space is limited eg in caravans, RVs and horse-floats
  • NEW Molded slot drain with brushed stainless steel cover plate
  • One of the new range of cubicles with tight 10 mm radius corners
  • Raised Base model now available for above ground plumbing
  • One piece construction – no leaks guaranteed
  • Excellent High gloss white fibre-glass finish
  • Choice of 3 locations for the recessed drain in the slot
  • Free standing re-inforced base and flange for easy installation
  • Low Step design (approx 80mm) for easy access to cubicle
  • For use with Glideaway Shower Door – see note below
  • Custom made stainless steel drain cover is included
  • Australian made with full 1 year warranty
  • Australia wide shipping – see Freight Guide in images and below

Product Documents



Technical & Installation Info:

  • Dimensions (approx) – with Standard Base
    • Height 1900 mm
    • Width 1030 mm
    • Depth 760 mm
  • Door options
    • If you wish to install the 1800mm  Glideaway Shower door you will first need to install one or two 50mm aluminium posts (powder coated white) to the side(s) of the aperture. This will reduce the aperture such that the Glideaway door can then can be installed
    • a Split Pivot shower door may also be installed (available soon)
  • Toilet options – Whilst this shower has been designed in response to customers wanting to install a compact toilet, please note the cassette toilets are not designed for wet areas. If you choose to install one we strongly recommend you seal the toilet product to prevent water ingress, as well as prevent water entering the toilet bowl (this will simply fill the cassette). We also suggest you design it so that a shower curtain material can keep the toilet entirely dry when the shower is in use. Our range of compact toilets can be viewed here
  • If you are thinking of installing a toilet on the LHS please also note the following
    • Flat floor depth on LHS is 660mm to start of radius
    • Radius in all corners is 10mm
    • Rear and side walls have a 10mm taper (so not vertical)
    • Floor has a 5mm fall where toilet would go – so water flows to RHS drain
    • May suit a toilet where one face fixes against the wall rather than a bench toilet

Please note the DIY Showers are supplied as a bare cubicle with no fittings or holes – so you can choose your own fittings and locate them where you want them. There will be a pilot hole in the drain location so you can cut your own hole to fit your waste.

Standard Base or Raised Base

The Standard base is recommended for installs where the cubicle will be placed on a vehicle chassis or timber floor with underfloor access  for the plumbing or new builds where the waste can be set up in the slab when poured.

The Raised Base is an option for people installing their cubicle on an existing concrete floor or where they are not able to put the waste thru the floor.

Freight – The options for Shower cubicles are:

  • Customer collects ex works SE Queensland
  • Local delivery – SE Queensland – with no packing
  • Delivery to a Land Transport Depot – full list of depots here – this requires wrapping the cubicle on a pallet

For all the details on freight costs for Showers and other practical info please click here

Please remember to specify in ‘Notes’ which freight option/depot suits when you place an order

Installation of other products – Important Notes

Care and Cleaning Instructions

Need more information on this product prior to purchase? Fill out our Contact Form and someone will be in touch.

Additional information

Drain location in slot

Front drain, Middle drain, Rear drain
