Floor Panel A – Honeycomb – 24mm (m2)

Specially developed as a caravan and RV floor product this honeycomb Floor Panel enjoys the following features:

  • One-piece construction– panels are made to order with no waste and no joins

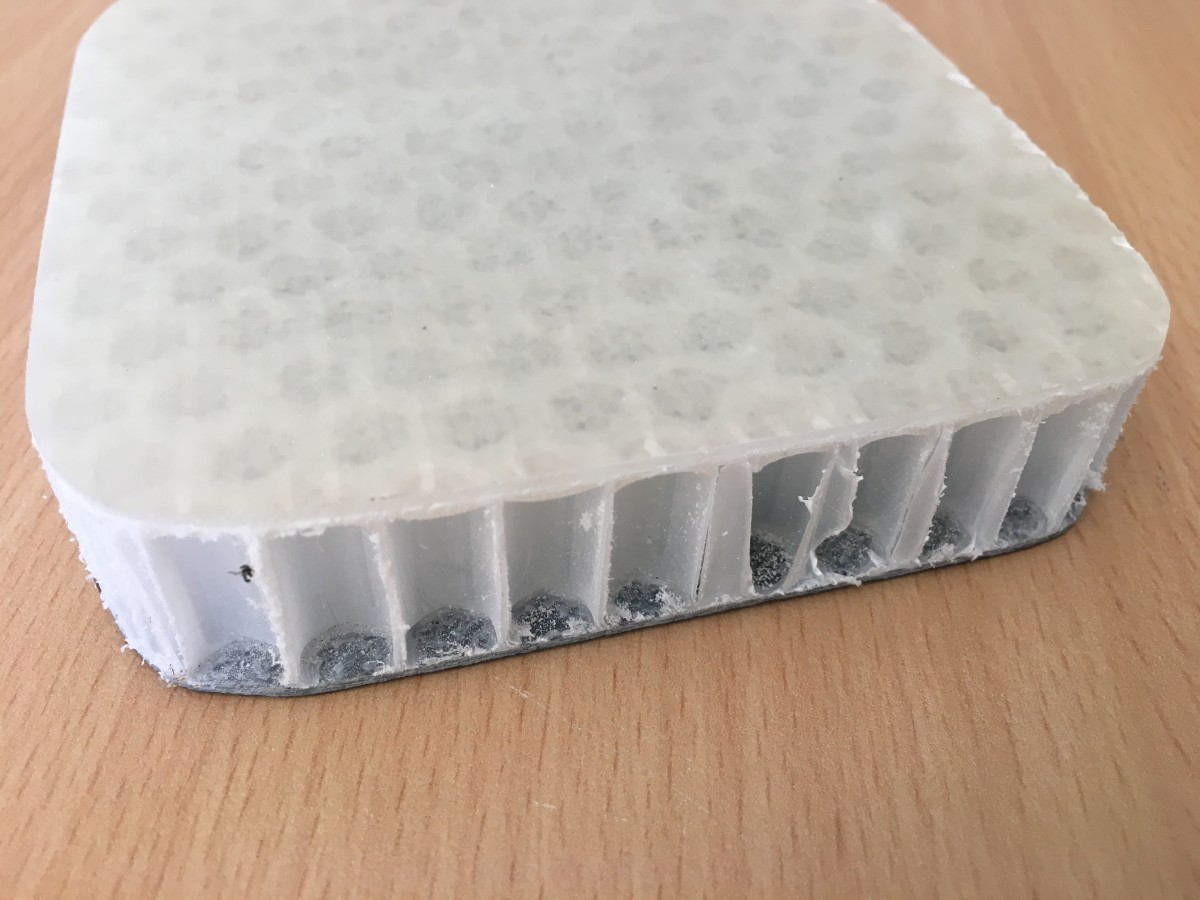

  • Polypropylene honeycomb core for superior long term performance
  • Excellent compressive strength properties – approx. double that of other perforated cores
  • Designed for cross member spacings of approx 600mm or high traffic areas
  • Lightweight panels (approx 7 kgs per m2) – up to 40% lighter than plywood
  • Impervious to water – so no risk of deterioration such as rotting or corrosion
  • High impact resistance
  • Will not delaminate

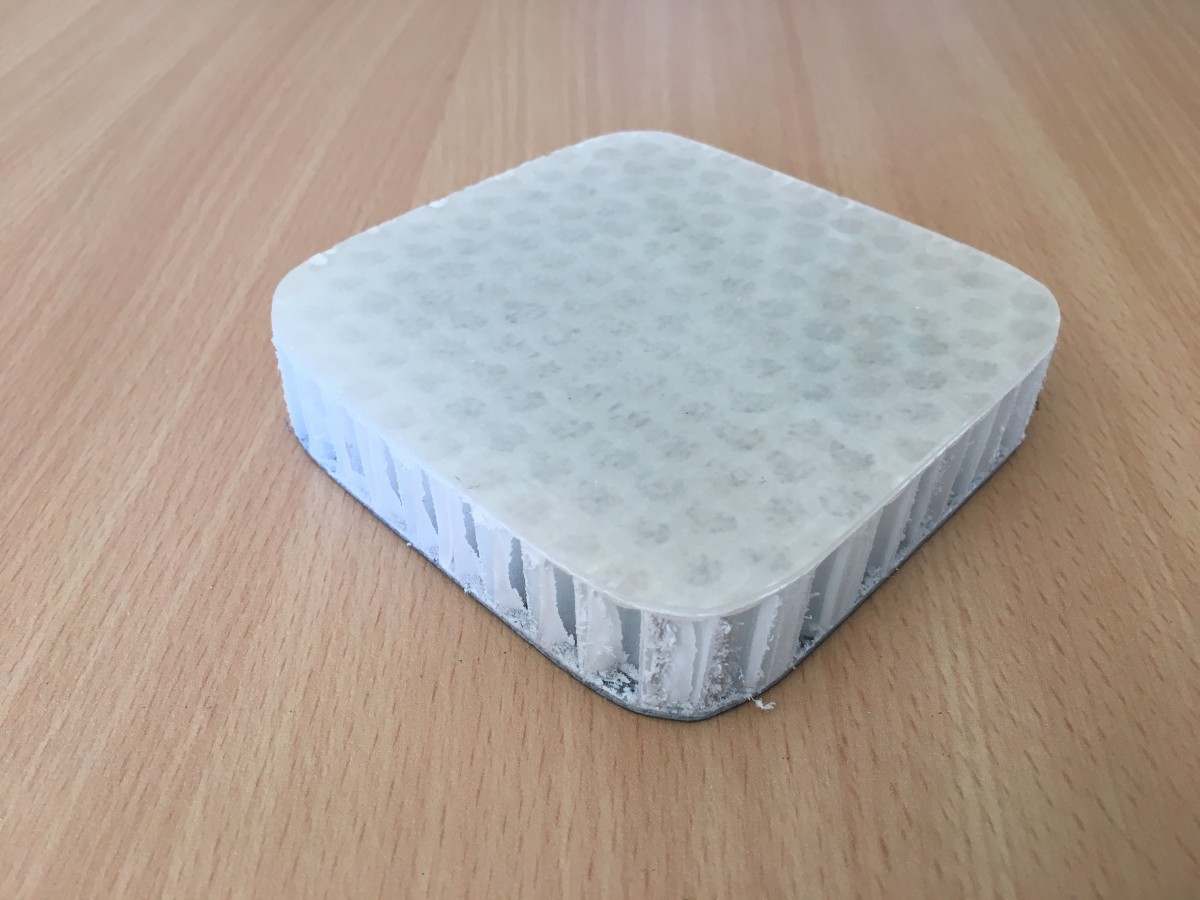

  • Clear resin finish on A side for installing floor covering if required

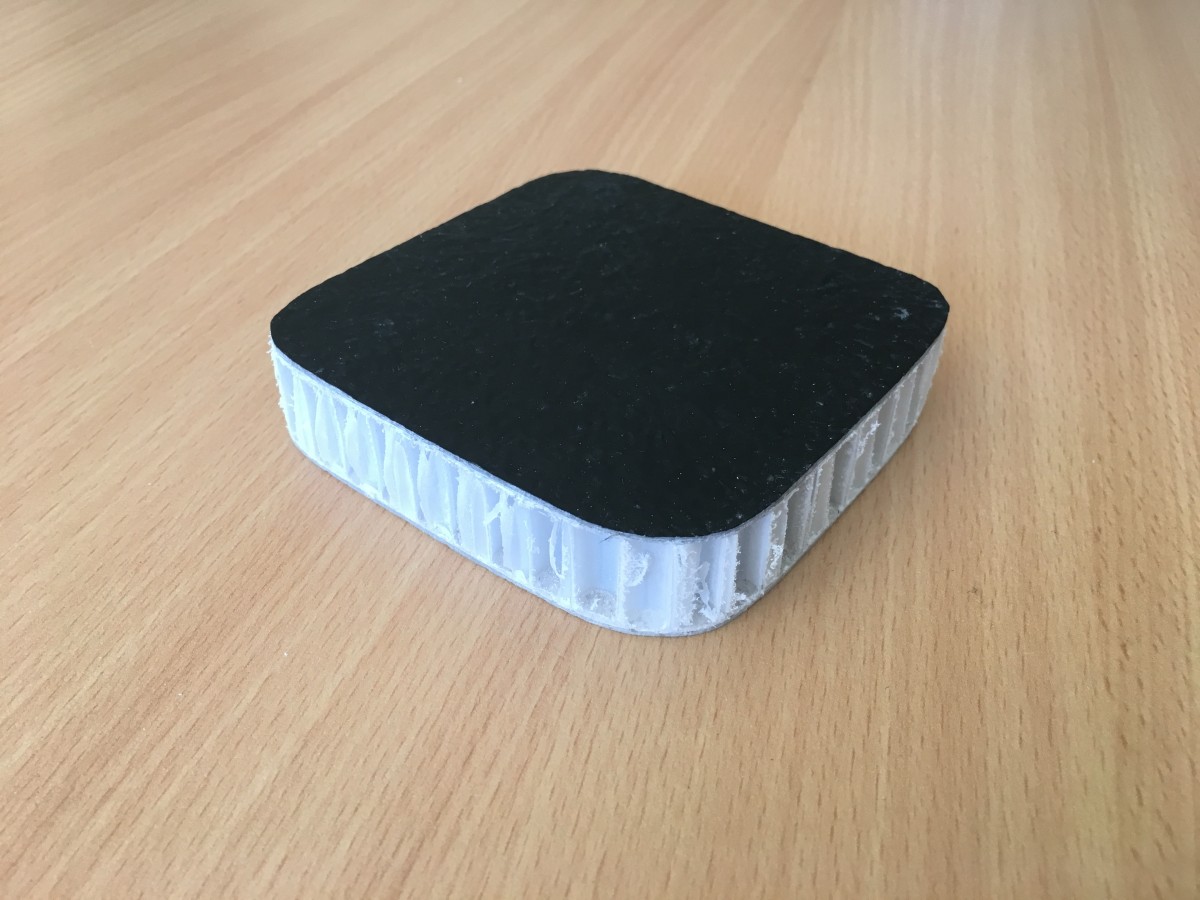

  • B side has a black flow-coat finish for adhesive to attach to chassis

This product is often bought as part of a Composite Panel Kit A




Additional benefits to customers include:

  • Allows you to build a lighter and stronger caravan or RV
  • No more ‘spongy’ floors
  • Use of this one-piece floor will enhance the strength of your chassis if installed with the DIY panel joiner system by trapping the panel joiner between the out-riggers and the floor panel, and attaching the floor panel to the full length of the chassis
  • Better resale value of your project
  • Other thicknesses available on request

Need more information on this product and a price for your kit? Fill out our Contact Form with a summary of your project and someone will be in touch to discuss the best product options available to you.
