ATRV Service Doors
$249.99 – $604.78 inc. GST

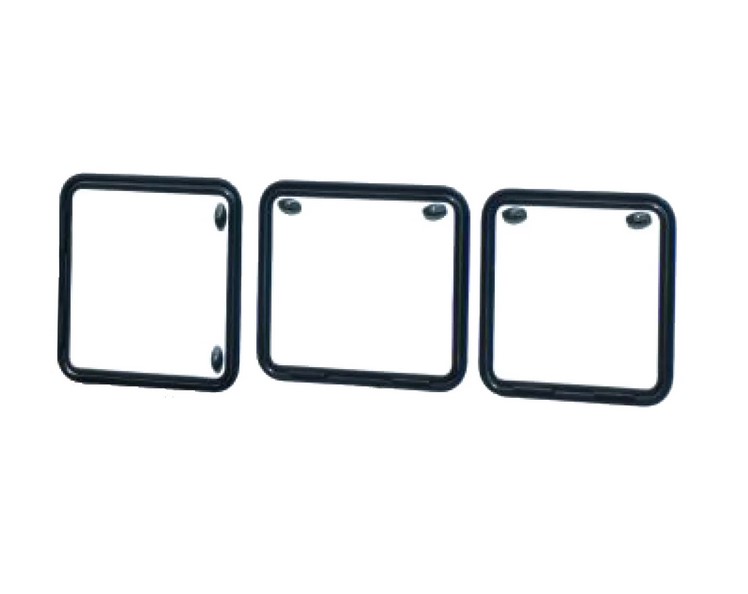

This robust range of aluminium door frames allows the use of your composite panel cut-out for a high quality finish. Ideal for slide-out kitchens, barbeques, fridges and generators.
- Aluminium frames powder-coated in black or white
- Doors open fully for easy access
- Range of single and twin lock options
- Self-tightening handle for a tight seal
- Locks can be keyed to match the DC entrance and teardrop doors
- Range of top, bottom and side configurations
- Australia wide shipping available
Product Documents
ATRV Service Doors
Description
Technical Info:
- Suitable for wall thickness from 30 mm to 45 mm
- Sizes listed are height x width and these are the frame sizes
- 4 radius corners of 68 mm
- Please note actual door opening is H-50 x W-50
- Required Wall Cut-outs are H+3 x W+3
- Doors come with seals to suit the range of wall thicknesses
- Gas struts are not included
- If for example the hinges are on the side -these doors can be installed with the hinges at the top without any issues
A foam core panel cut-out is supplied with a white skin. This may be used or you can use your own cut-out to match your wall finish. Gas struts are not supplied.
Freight Info:
- Shipping nationwide
Do you have a question regarding this product ? Please email it to us on our Contact Form and we will be in touch.
Additional information
Door Size (H x W) | 350 x 600, 400 x 350, 450 x 300, 450 x 800, 520 x 350, 520 x 500, 520 x 1000, 522 x 1007, 550 x 400, 550 x 650, 550 x 1250, 600 x 600, 650 x 650, 700 x 600, 1000 x 1300, 1007 x 522 |
---|---|
Hinge Option | Top Hinge, Bottom Hinge, Side Hinge |
Locks | Single Lock, Twin Lock |
Frame Colour | White, Black |
