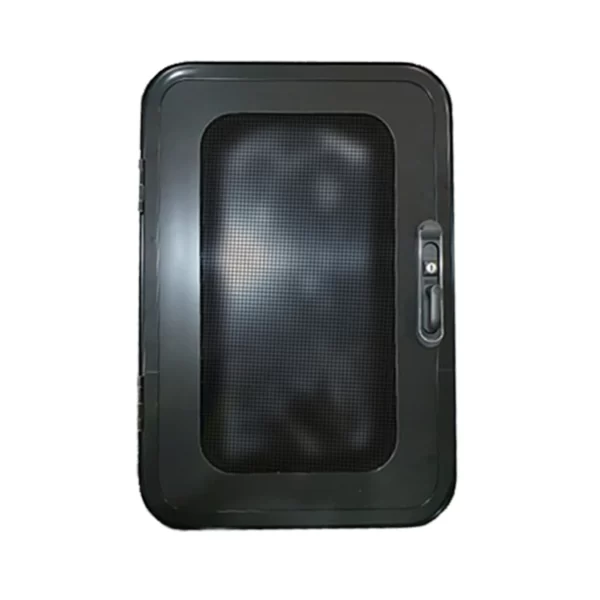

ATRV DC Teardrop Door
$779.99 – $844.99 inc. GST
This teardrop door is part of the larger range of Quality DC doors released by ATRV which combine style, security and excellent value
- High quality powder-coated frame and panel
- Tinted UV tinted acrylic window
- 3 sizes available with all radius corners
- Some available in black frame with black panel or white frame with white panel
- Strong 3 point compression lock system of a security door with waterproof and dust proof seal
- Midge proof fly-screen made from high-strength fibre-glass mesh
- Available with Left or Right hand hinges
- No Vent
Product Documents
Installation Instructions
Description
Technical Info:
- The standard seal suits wall thickness 29-35 mm. If you select a wall thickness 25-28 mm OR 36-40 mm you will receive a different seal
- The DC door frame depth is approx 36 mm
- Cut Out details – radius are 90mm and we recommend cut-out size used is H+3mm and W+3mm.
- For all other details refer to Installation Document above
Install Tip – Avoid opening the front of the door prior to it being installed as there are packers in place to keep the door (s) and frame positioned properly for the install. These will fall out when the door is opened. Either use the online Installation guide if you are not able to get at the paper one sent inside the door – or carefully open the screen door enough to get the guide out.
Freight Info:
- Shipping nationwide
Need more information on this product prior to purchase? Fill out our Contact Form and someone will be in touch.
Additional information
| Door Size ( H x W ) | 900 x 900, 900 x 622, 945 x 945, 975 x 700 |
|---|---|
| Hinge Location (from outside) | Left Hand Hinge, Right Hand Hinge |
| Door Colour | Black, White |
| To suit wall thickness | 25-28 mm, 29-35 mm, 36-40 mm |
