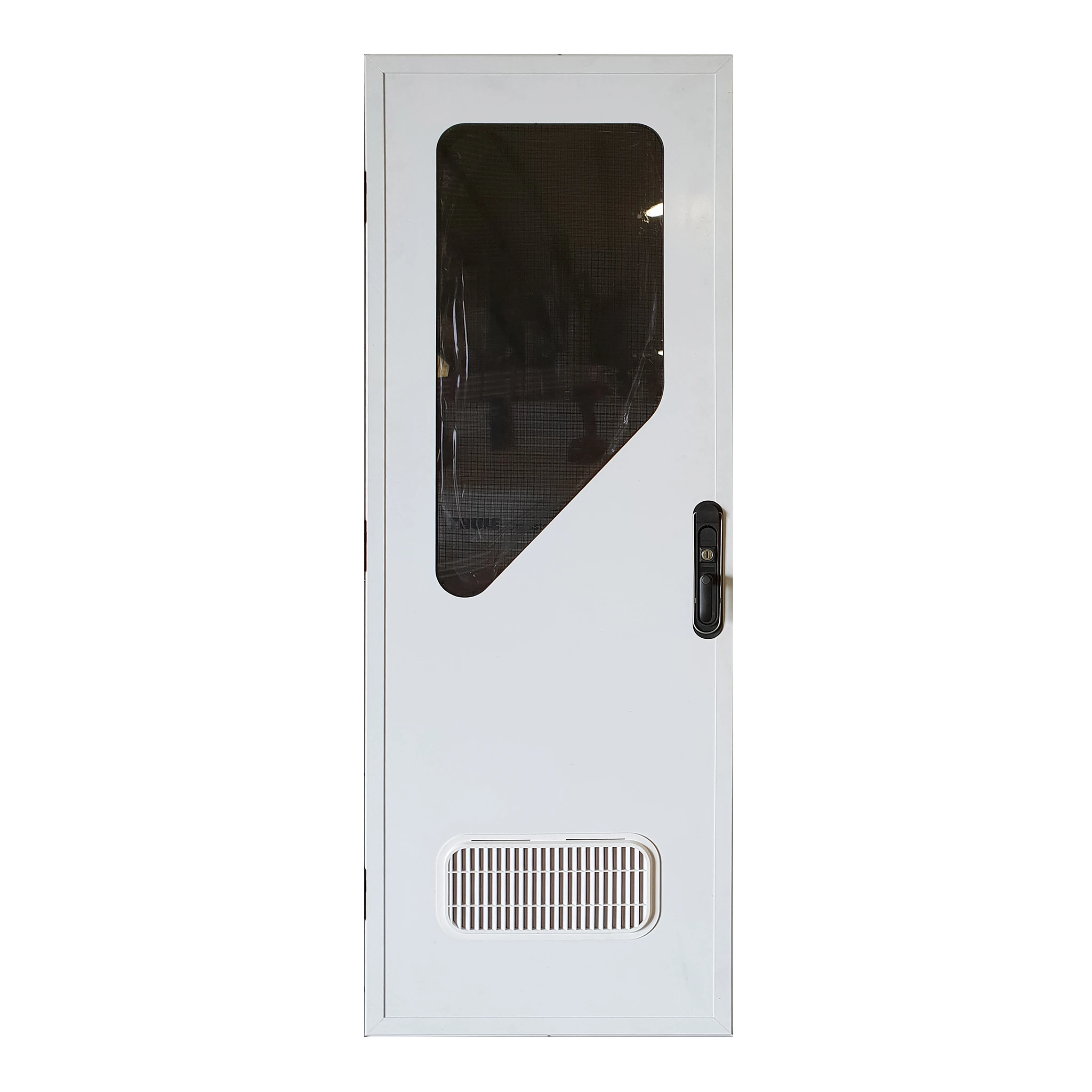

ATRV DC Caravan Door
$935.99 – $1,205.18 inc. GST
The range of ATRV DC Caravan Door’s combine style, security and excellent value
- New stylish teardrop panel
- UV tinted flat acrylic window
- Available in a large range of sizes with square or radius top corners
- Colours – white Frame with white panel or black frame with black panel
- Triple compression lock system provides the security and comfort of a true security door
- Separate Stainless 304 security mesh with Tri-seal midge proof screen
- Available with Left or Right hand hinges
- All doors come with an approved gas vent in black
- Seals available to suit wall thickness 25-40 mm
Product Info
Installation Instructions
Description
ATRV DC Caravan Door
The ATRV DC Caravan Door range effectively combines style, security, and excellent value, making it a superb choice for your caravan entrance needs. This door features a new, stylish teardrop panel and a UV-tinted flat acrylic window, which not only enhance its aesthetic appeal but also contribute to its durability.
Features:
- New, stylish teardrop panel
- UV-tinted flat acrylic window
- Available in a broad range of sizes, including options with square or radius top corners
- Color options include a white frame with a white panel or a black frame with a black panel
- The triple compression lock system ensures robust security, providing peace of mind
- Separate Stainless 304 security mesh with a Tri-seal midge-proof screen offers additional protection
- Available with either left or right-hand hinges
- Includes an approved gas vent in black for added functionality
- Seals are available to accommodate wall thicknesses from 25 to 40 mm
Technical Information:
- Cut-out details – the top radius is 90 mm; we recommend using a cut-out size of H+3 mm and W+3 mm.
- The standard seal is suitable for wall thicknesses of 29-35 mm. For wall thicknesses of 25-28 mm or 36-40 mm, a different seal will be provided.
- It is important to note that these doors are not ADR approved for use in motorhomes and campervans.
- The DC door frame depth is approximately 36 mm.
- For all other details, please refer to the Installation Document above.
Installation Tip:
When installing, avoid opening the front of the door beforehand, as packers are in place to keep the door and frame properly positioned. These packers will fall out once the door is opened. Use the online Installation Guide if you cannot access the paper guide included with the door, or carefully open the screen door just enough to retrieve the guide.
Freight Information:
Shipping is available nationwide, ensuring you receive your door promptly and efficiently.
Need more information on this product prior to purchase? Fill out our Contact Form and someone will be in touch.
Additional information
| Door Size | 1070 x 622, 1420 x 622, 1460 x 622 no vent, 1540 x 575, 1540 x 622, 1623 x 622, 1750 x 622, 1750 x 675, 1822 x 622, 1908 x 622, 1908 x 762, 1250 x 622, 1260 x 575, 2008 x 762 |
|---|---|
| Top Corners | Radius, Square |
| Hinge Location (from outside) | Left Hand Hinge, Right Hand Hinge |
| Door Colour | White, All Black |
| To suit wall thickness | 25-28 mm, 29-35 mm, 36-40 mm |
