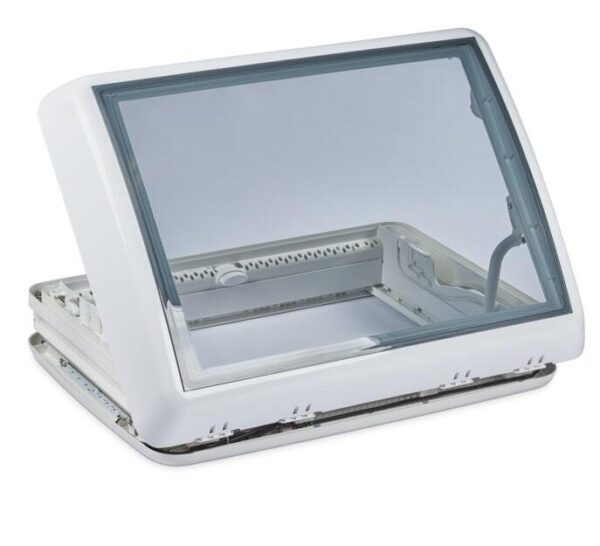

Dometic Midi Heki Skylight w LED (lever model)

$824.62 inc. GST

The Dometic Midi Heki Skylight w LED (lever model) are of exceptional quality. This Midi Skylight model has these features:

  • Large roof opening for optimum ventilation and light conditions
  • LED lights featuring day light white and night light blue
  • Suitable for roof thicknesses from 25 to 60mm (please specify)
  • Lever model – simply push up to open hatch up to 45 degrees
  • Fixed permanent ventilation 150cm2
  • Integrated blackout blind and flyscreen (can be adjusted separately)
  • Dome with new double acrylic glazing and has a white edge
  • Cut out required: W700 x D500 mm

Midi Heki Installation & Operation Instructions



The Dometic Midi Heki Skylight w LED (lever model) are of exceptional quality.

Technical Information:

  • Overall Size 617mm x 847 mm
  • Cut-out size required 500mm (+/-2mm) x 700mm (+/-2mm)
  • 4 radius corners R12mm
  • Ventilation opening 150cm2
  • Weight 8 kgs
  • Dometic Part # DOM14921702 & Ref # 9104120362

So that you can enjoy your holiday in an ideal atmosphere in comfort and safety, Dometic SEITZ has designed a large range of tilting roof windows (“Heki” for short) for all types of caravans or motorhomes. The Seitz Heki Skylight is:

  • The Midi Heki Skylight with LED has easy adjustable glass dome
  • Product includes the mounting kit to match roof thickness – please specify so we send the correct mounting frame
  • The permanent ventilation feature helps avoid condensation in the van and also helps meet compliance requirements if you have a gas appliance installed

Need more information on this product prior to purchase? Fill out our Contact Form and someone will be in touch.


Additional information

Roof Thickness

25-29mm, 30-34mm, 35-42mm, 43-52mm, 53-60mm
