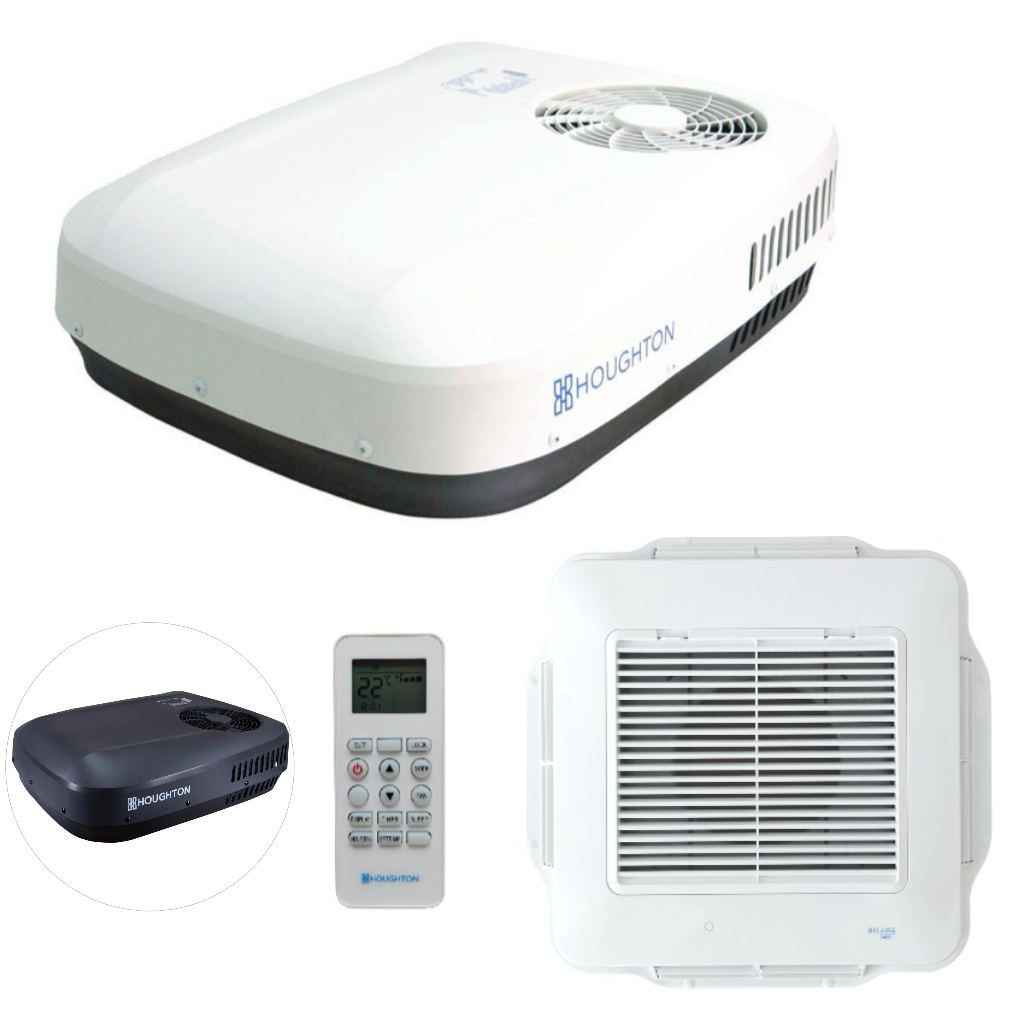

Houghton Belaire HB2800 AC Unit – Standard & Inverter Models

The Houghton Belaire HB2800 AC unit – Standard & Inverter Models is a top choice for caravan and RV owners seeking an efficient, compact air conditioning solution that can handle diverse climates.

Available in both the Standard and Inverter models, the HB2800 delivers powerful cooling and heating performance in a compact, lightweight design, perfect for the Australian environment.

Its streamlined profile allows for more flexibility on the roof, so making room for solar panels, antennas, and other rooftop accessories. Also enjoy comfort and convenience all year round with the Houghton Belaire HB2800, tailored for modern travel needs.



Standard Model – Key Features

The Houghton HB2800 Standard model offers excellent cooling and heating performance, designed for the Australian climate. Its 855 mm length provides a compact footprint, leaving ample space on your caravan’s roof for other essentials. Key features include:

• Compact, Low Profile: 215 mm height and 855 mm length, allowing flexible rooftop installation.
• Remote Control Operation: LED display for mode and temperature, with easy remote access.
• 5 Operation Modes: Auto, Fan, Cool, Heat, and Dry (dehumidify) for complete control.
• 4-Way Air Outlet: Efficient airflow distribution throughout the caravan.
• Microcontroller Features: Automatic coil defrost, compressor protection, and fault monitoring for worry-free operation.



Specifications – Standard Model

• Power Supply: 220-240V, 50Hz
• Cooling Capacity: 2800W
• Heating Capacity: 2600W
• Rated Current (Cooling): 5.0A
• Rated Current (Heating): 4.8A
• Maximum Airflow: 135 L/s
• Weight: 32.5 kg
• Outdoor Unit Dimensions (HxWxL): 215 x 657 x 855 mm
• Plenum Unit Dimensions (HxWxL): 49 x 556 x 575 mm
• Roof Opening: 360 x 360 mm
• Roof Thickness Range: 25–70 mm
• Operating Temperature: Up to 52°C



Inverter Model – Key Features

The Houghton Belaire HB2800V Inverter model enhances comfort with advanced inverter technology, delivering smoother operation and improved efficiency. Its soft start function allows reliable operation on mains power, generator power, and battery/inverter systems. With a compact design and ECO mode, it’s perfect for energy-conscious travelers.

• Inverter Technology: Provides a variable speed compressor for improved energy efficiency and quieter operation.
• Soft Start Function: Ideal for use with generators and battery/inverter systems, reducing peak power demand.
• Eco Mode: Operates at 40% or 70% power, depending on energy needs.
• Compact and Lightweight: Measures 855 mm in length, allowing for more rooftop accessories.
• 4 Fan Speeds: Options range from turbo for quick cooling to low for quiet nighttime use.



Specifications – Inverter Model

• Power Supply: 220-240V, 50Hz
• Cooling Capacity: 2800W
• Heating Capacity: 2600W
• Rated Current (Cooling/Heating): 4.8A
• Maximum Input Power: 1300W
• Maximum Airflow: 390 L/s
• Weight: 34.9 kg
• Outdoor Unit Dimensions (HxWxL): 215 x 657 x 855 mm
• Plenum Unit Dimensions (HxWxL): 49 x 556 x 575 mm
• Roof Opening: 360 x 360 mm (or 400 x 400 mm with adapter)
• Operating Temperature Range: -5°C to +52°C



Choose Your Ideal AC Solution

Whether you choose the Standard or Inverter model of the Houghton Belaire HB2800, both units provide efficient, reliable climate control for your RV or caravan. The Standard model offers all the essential features for powerful cooling, while the Inverter model adds enhanced efficiency and flexibility. Enjoy a 2-year warranty for peace of mind as you embark on your adventures.



For installation details, please refer to the included instructions or consult a professional installer to ensure optimal performance.
