DIY Chassis plates (for gooseneck hitch mounting) each

$121.02 inc. GST

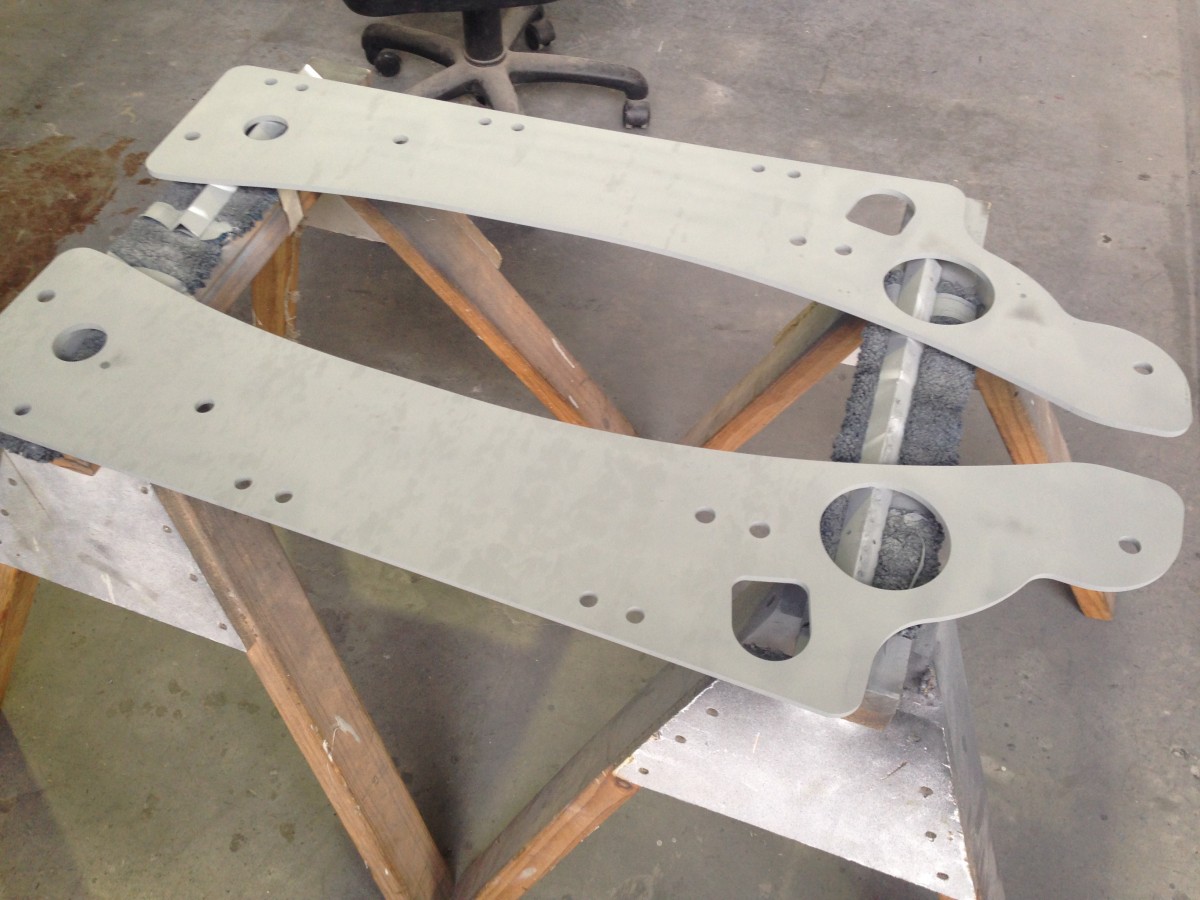

Designed specifically for the Mazda BT50 and Ford Ranger chassis (post 2011), these laser cut steel plates are the ideal platform for the installation of a goose-neck hitch or 5th wheel hitch over the rear axle.

  • Includes engineer’s design certificate rated at 4500kgs ATM – available on request
  • Can be used with a fifth wheel hitch or a 3 inch ball hitch for towing horse floats and goose-neck trailers
  • This item is the chassis plate(s) only – the rest of the assembly is not supplied – see drawing below
  • The installation of these plates will require your Engineer’s certification and normally involves some drilling of the chassis and use of anti-crush tubes.

Technical Drawing

Assembly Drawing

Out of stock


Ford Ranger and Mazda BT50 are a popular choice for towing 5th wheelers and goose-neck horse floats and trailers. These laser profiled mild steel plates are designed for installation with minimum interference with the vehicle chassis. See image of installed plate.

  • The complete assembly includes 3 lengths of 76 x 38 mm channel (not included) which are bolted to the chassis plates to create a very strong platform just beneath the well-back or flat tray of the vehicle. This platform can be used to mount a fifth wheel hitch or 3 inch ball hitch to tow your goose-neck trailer. Refer to assembly Drawing.
  • Chassis plates are designed and engineered for these vehicles and are certified to ATM of 4500 kgs. Certificate supplied with purchase on request.
  • Engineer certification of the customer’s installation is the responsibility of the purchaser.
  • The price is for each plate
  • Plates are supplied bare steel
