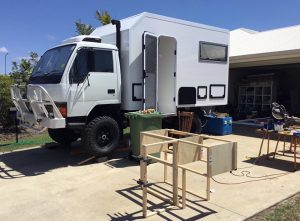

The designs and principles of DIY construction have been used in a large range of projects – some of which were built by our sister business Cut Loose RV. The images below are here to help you work out the best design for your project. Whether it is a simple idea or a complex design – the secret of DIY is building what works for you.
Scroll down to see ideas and solutions for:
- External features
- Internal features
- Shell Design
Most projects require an electrical system which may include road-lights, a 12 volt system and/or a 240 volt system. Choose at the design stage what items you require and where you intend to install them. Key areas to consider include :
- Battery location – Unless you use Lithium this is one of the heavier items in the unit. Ideally locate on the RHS and in front of the axle. Also the batteries need to be accessible for testing and/or replacing.
- Electric locker – Most projects include an electric locker accessible from the outside. Main items are 240 volt switchboard, 12 volt fuses, battery charger, solar controller and the battery. DIY strongly recommends two extra components:
- A battery protector will prevent over-discharge of your battery by cutting power off when it reaches a preset voltage set by you – will save you damaging the battery
- An 12 volt isolation switch will allow you to turn ALL 12 volt circuits off when you leave the trailer for some time. This saves you coming back to a flat battery.
- Control Panel – Depending on your appliances you may need a few switches inside the unit eg. Hot Water System switch, tank monitors etc which can be located in one locker. DIY recommends installing a 12 volt voltmeter here also. Managing your battery state eg with solar is MUCH easier is the voltmeter is easy to see.
- Wiring – Consider how you will run your wiring from the appliance to the electric locker and control panel – this may affect where you choose to locate them. The DIY chassis and composite panel system has been designed to make this easy and accessible.

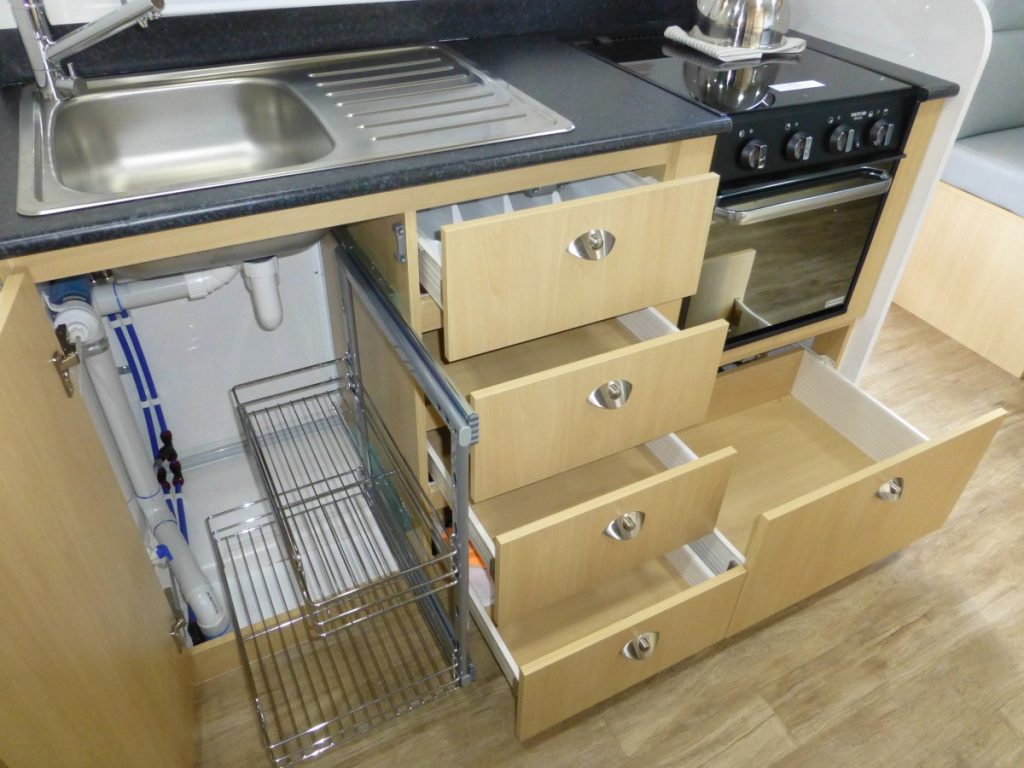

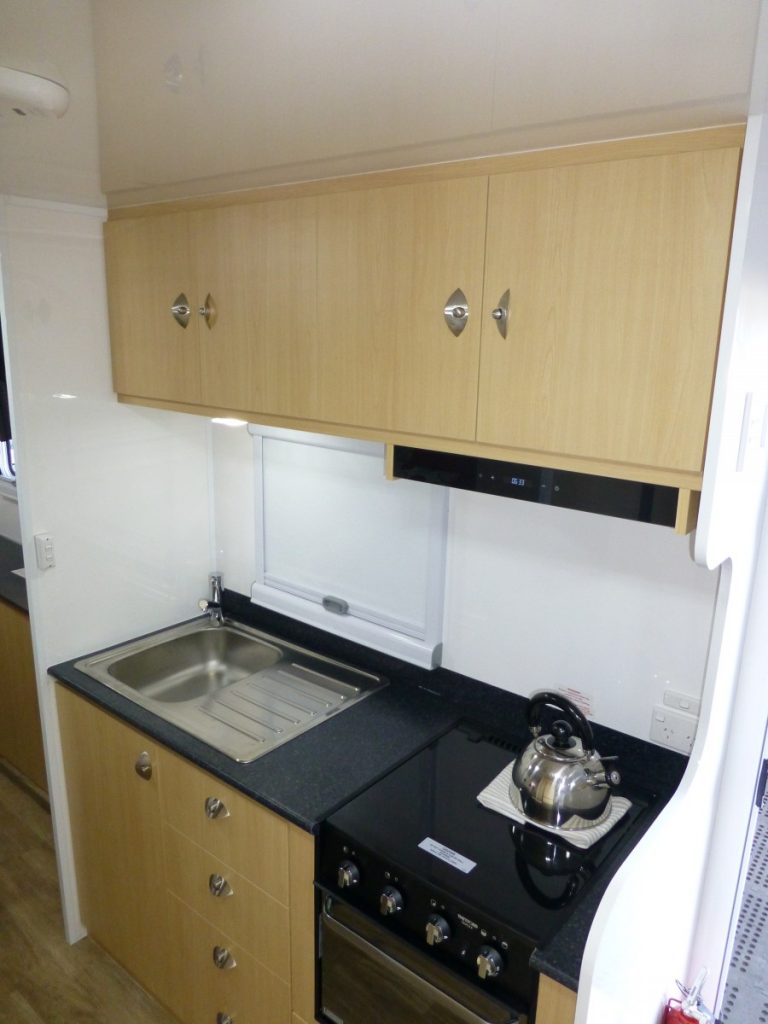

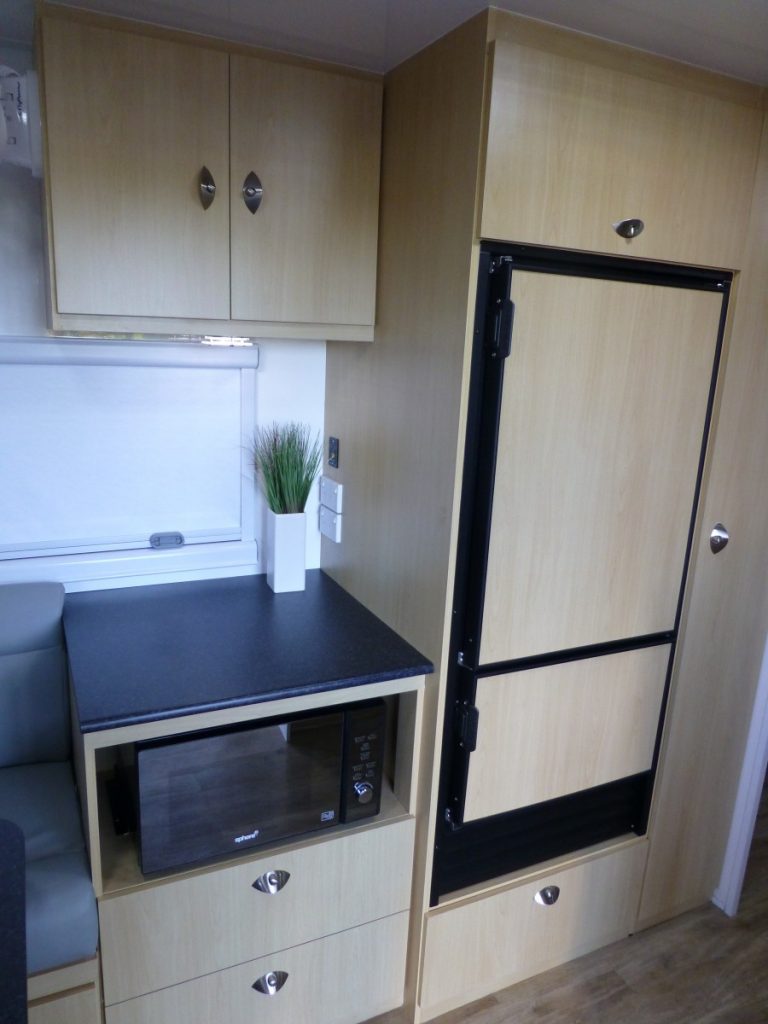

DIY supplies an 18mm composite panel ideally suited for the internal space. With the same perforated core design it is ideal for building :
- Shower room

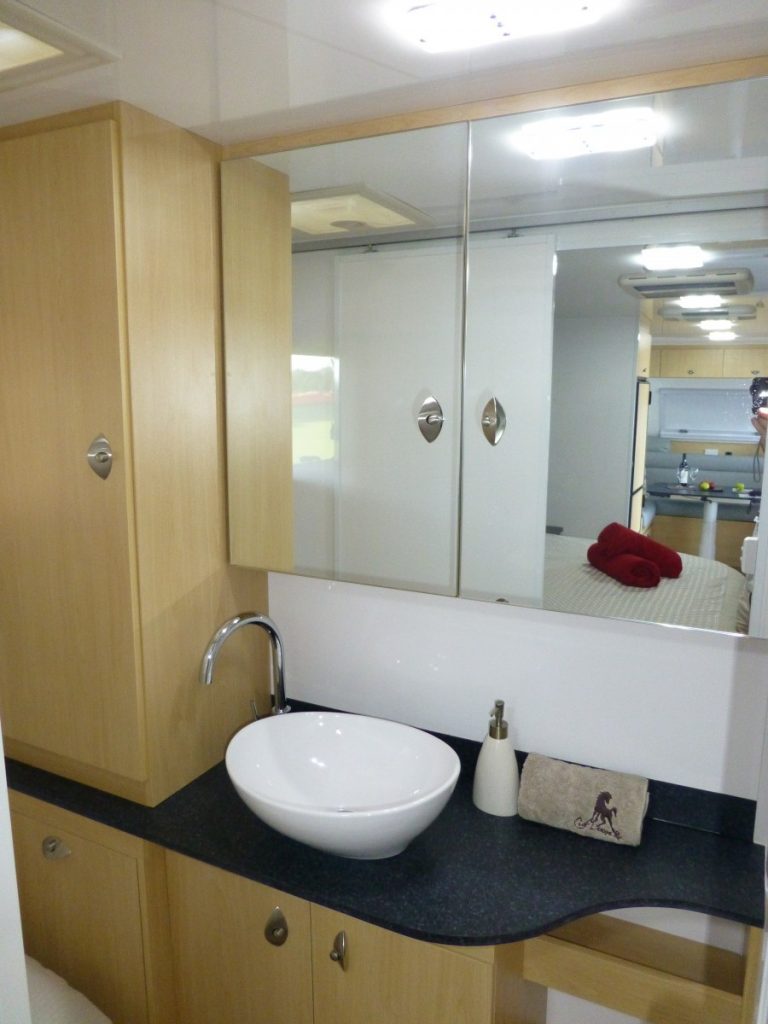

- Ensuite bathroom
- Toilet or simply a
- full height bulkhead

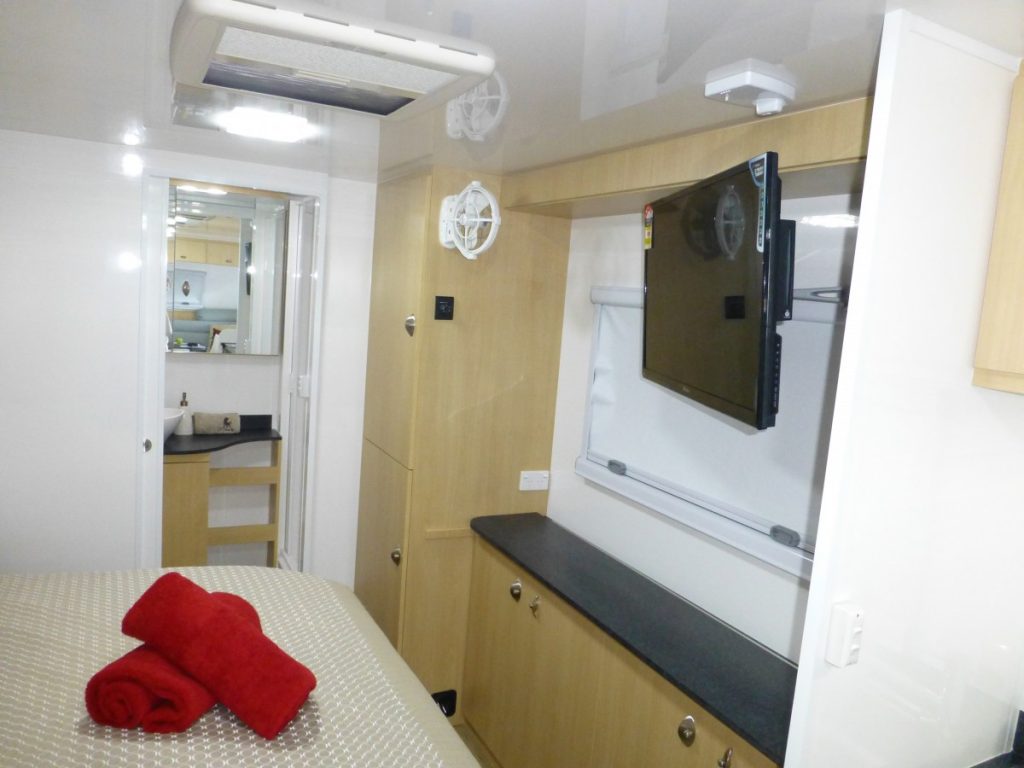

For example a panel can be used to form the wall to a shower cubicle – see pic below – such that access to the shower mixer valve is accessible inside a cabinet such as a wardrobe. Use of the Internal Angle Trim and Internal Wall Channel creates a very neat and strong finish.

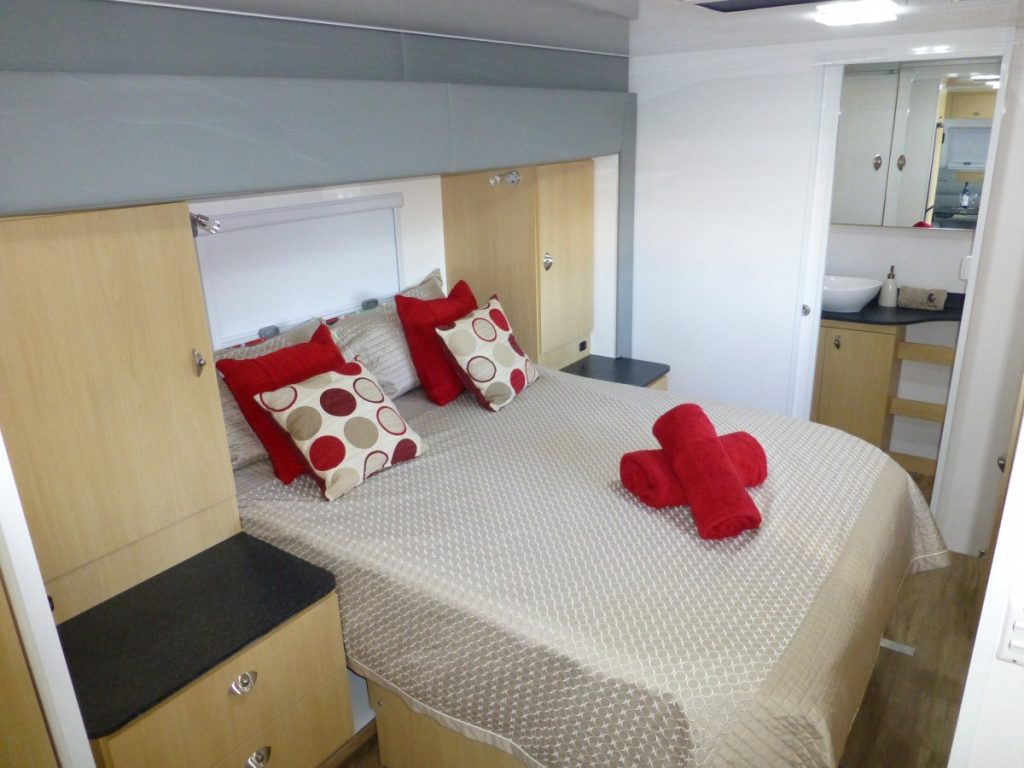

The internal space can even be divided into separate rooms as these pictures of a fifth wheeler shows where the en-suite and bedroom were totally separate. Using the channel to ‘frame’ doors allow standard door hinges and handles to be used.

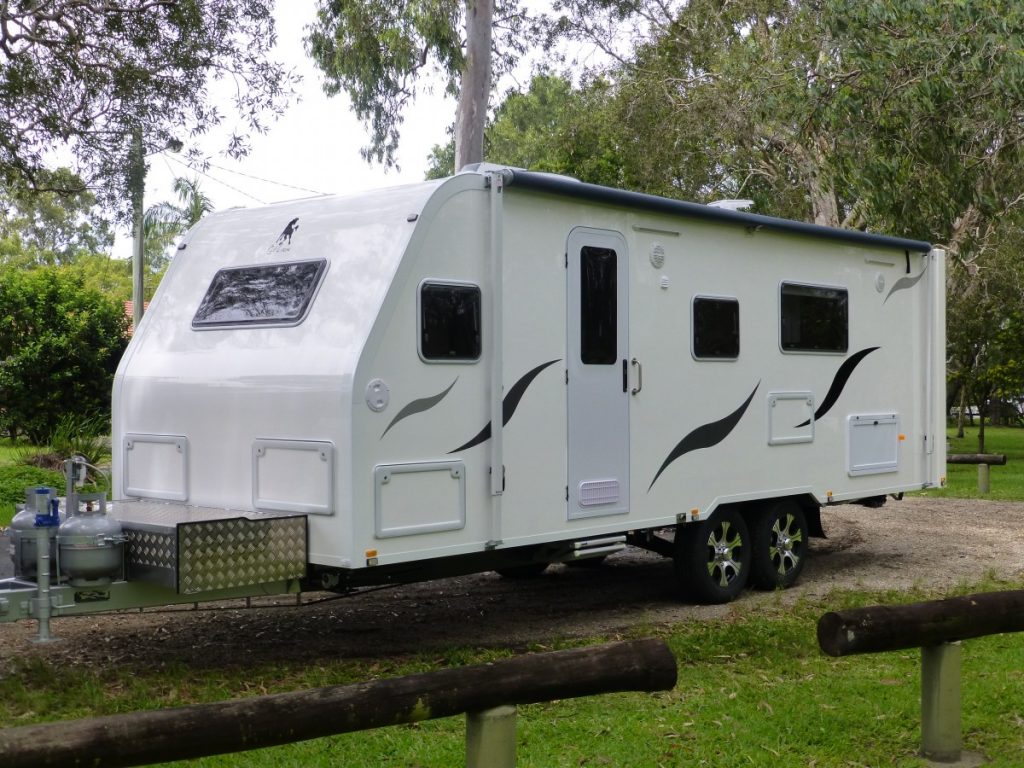

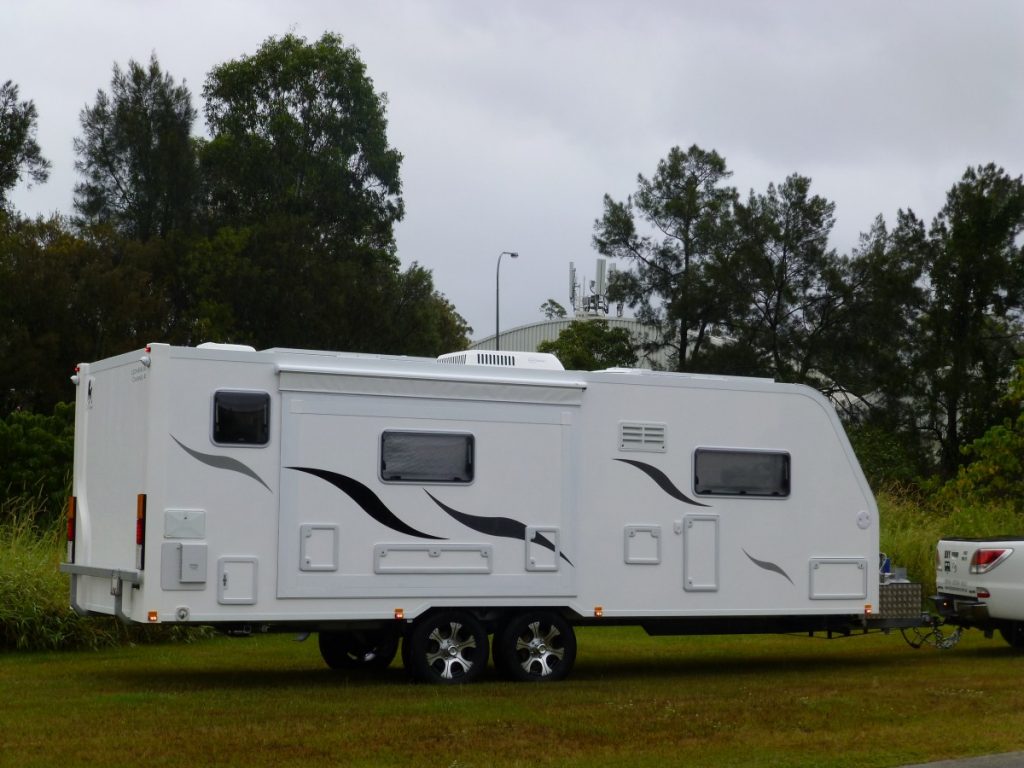

DIY technology has been used for many years in the production of custom built RVs (many in the brand name Cut Loose RV).
Scroll below for inspiration and ideas for
- fifth wheelers,
- caravans and
- toy haulers
